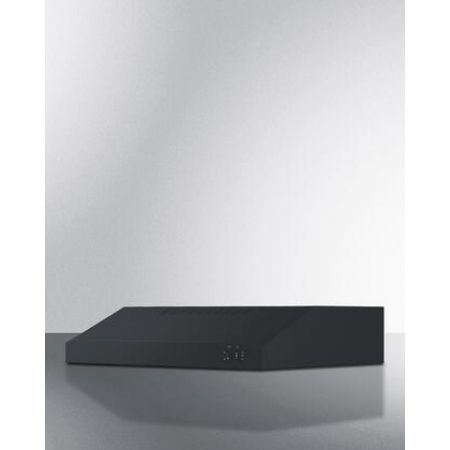

| Summit HC24BB Appearance |
| Type | Hood |
| Style | Standard Hood |
| Color | Black |
| Summit HC24BB Details |
| Duct Type | Both |
| Venting Type | Convertible |
| Convertible Ducting | Yes |
| Blower Type | Internal |
| Mounting Type | Under Cabinet |
| Vent Location | Top or Rear |
| CFM | 200 CFM |
| Light Bulb Type | Incandescent |
| Number of Fan Speeds | 2 |
| Recirculating Kit | Included |
| Filter Type | Mesh |
| Fan | Yes |
| Light | Light Bulbs Not Included |
| Summit HC24BB Electrical Specifications |
| Volts | 115 Volts |
| Amps | 15 Amps |
| Frequency | 60 Hz. |
| Summit HC24BB Features |
| ETL | Yes |
| Combination Charcoal/Aluminum Mesh Filter | Yes |
| Summit HC24BB Technical Details |
| Warranty Terms | 1 Year Parts and Labor |
| Weight | 15 lbs |
| Summit HC24BB Dimensions |
| Exterior Width | 24" |
| Duct Diameter | 7" |
| Duct Length | 3.25" |
| Duct Width | 10" |
| Height | 5.5" |
| Depth | 20" |
| Width | 23.88" |
