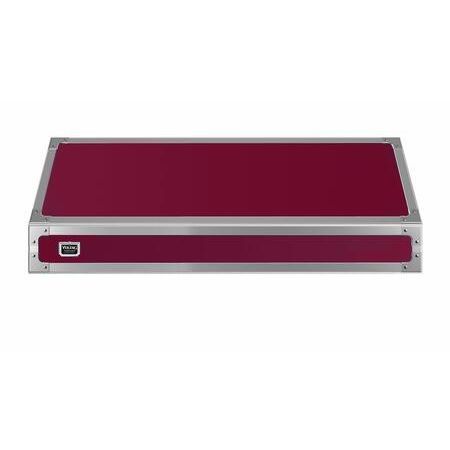

| Viking TVWH480BX Appearance |
| Type | Hood |
| Style | Canopy Pro Style |
| Venting Type | Ducted |
| Blower Type | Blower not Included |
| Viking TVWH480BX Features |
| Light | Yes |
| Light Bulb Type | LED |
| Automatic Turn On | Yes |
| Glass Canopy | No |
| Backlit LED Knobs | Yes |
| Dishwasher Safe Filter | Yes |
| Viking TVWH480BX Technical Details |
| Color | Bordeaux |
| Energy Star | No |
| Width | 48" |
| Control Type | Knobs |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Approved for Outdoor Use | No |
| Dishwasher Safe Filters | Yes |
| Temperature Sensor | Yes |
| Mounting Type | Wall Mount |
| Filter Type | Baffle |
| Commercial | No |
| Frequency | 60 Hz. |
| UL | No |
| cUL | No |
| Duct Cover Width | 35.875" |
| Duct Cover Depth | 12" |
| Number of Filters | 3 |
| Duct Cover Height | 12" |
| Number of Light Bulbs | 3 |
| Heat Lamp Sockets | 2 |
| Heat Lamps Included | No |
| Weight | 66.00 lbs |
| Viking TVWH480BX Dimensions |
| Height | 18" |
| Exterior Width | 48" |
| Depth | 24" |
| CFM | 1500 CFM |
