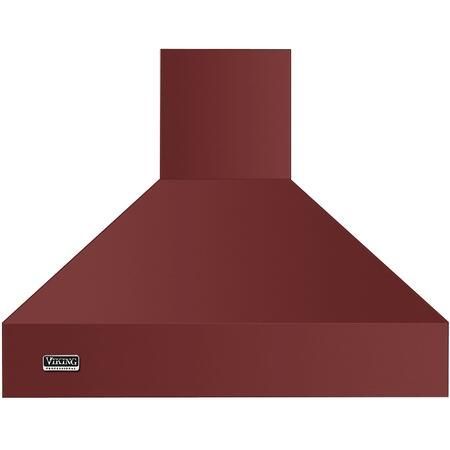

| Viking VCWH54848RE Appearance |
| Type | Hood |
| Style | Chimney Style |
| Venting Type | Ducted |
| Blower Type | Blower not Included |
| Viking VCWH54848RE Features |
| Vent Location | Top |
| Duct Type | Round |
| Light | Yes |
| Light Bulb Type | LED |
| Number of Fan Speeds | Variable |
| Glass Canopy | No |
| Heat Sensor | Yes |
| Backlit LED Knobs | Yes |
| Heat Lamp | Yes |
| Quietest Hood and Ventilator Combination | Yes |
| Viking VCWH54848RE Technical Details |
| Color | Reduction Red |
| Width | 47.875" |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Mounting Height | 30-36" |
| Temperature Sensor | Yes |
| Mounting Type | Wall Mount |
| Filter Type | Baffle |
| Frequency | 60 Hz. |
| Warranty Terms | 2 Years Parts and Labor |
| UL | No |
| Fan | Yes |
| Recirculating Kit | No |
| Duct Diameter | 10" |
| cUL | No |
| Number of Light Bulbs | 3 |
| Weight | 145.00 lbs |
| Viking VCWH54848RE Dimensions |
| Height | 18" |
| Exterior Width | 48" |
| Depth | 24" |
| CFM | 1500 CFM |
