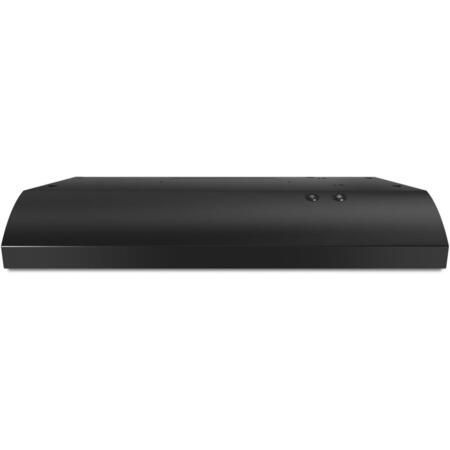

| Whirlpool UXT3030ADB Appearance |
| Style | Standard Hood |
| Venting Type | Recirculating |
| Blower Type | External |
| Whirlpool UXT3030ADB Features |
| Duct Type | Rectangular |
| Light | Yes |
| Light Bulb Type | Incandescent |
| Number of Fan Speeds | 2 |
| FIT System | Yes |
| Whirlpool UXT3030ADB Technical Details |
| Color | Black |
| Weight | 17 lbs. |
| Energy Star | No |
| Type | Hood |
| Width | 29.937" |
| Control Type | Push Button |
| Volts | 120 Volts |
| Approved for Outdoor Use | No |
| Mounting Type | Under Cabinet |
| Control Location | Front |
| Commercial | No |
| Fan | Yes |
| Recirculating Kit | Included |
| Task Light | Incandescent |
| Removable Grease Filter | Yes |
| Make-Up Air Compliant | Yes |
| Glass Canopy | No |
| Whirlpool UXT3030ADB Dimensions |
| Exterior Width | 30" |
| Height | 4.937" |
| Depth | 18.625" |
| CFM | 190 CFM |
