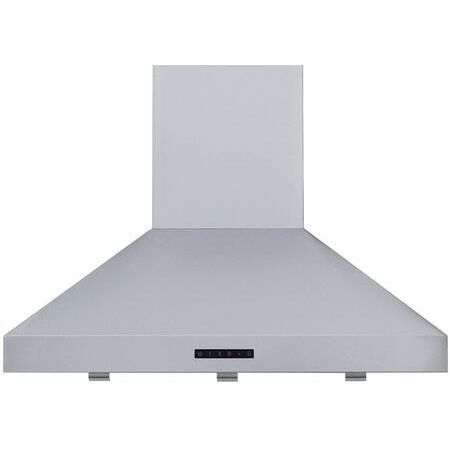

| Windster RA7630SS Appearance |
| Type | Hood |
| Venting Type | Convertible |
| Style | Chimney Style |
| Blower Type | Internal |
| Windster RA7630SS Features |
| Number of Fan Speeds | 3 or More |
| Duct Type | Round |
| Vent Location | Top |
| Glass Canopy | No |
| Stainless Steel Design | Yes |
| Windster RA7630SS Technical Details |
| Color | Stainless Steel |
| Energy Star | No |
| Width | 29.75" |
| Volts | 120 Volts |
| Amps | 20 Amps |
| Approved for Outdoor Use | No |
| Light | Yes |
| Mounting Height | 27"-33" |
| Mounting Type | Island Mount |
| Filter Type | Baffle |
| Frequency | 60 Hz. |
| Warranty Terms | Limited 1 Year Parts and labor, 2 Years for Parts Only |
| UL | No |
| Fan | Yes |
| Recirculating Kit | Sold Separately |
| Duct Diameter | 6"/7" |
| cUL | No |
| Make-Up Air Compliant | Yes |
| Duct Cover Height | 31.75" |
| Number of Light Bulbs | 4 |
| Light Bulb Type | LED |
| Programmable Turn Off | Yes |
| Adjustable Duct Cover | Yes |
| Minimum Duct Cover Height | 21" |
| Weight | 95.00 lbs |
| Windster RA7630SS Dimensions |
| Exterior Width | 30" |
| Depth | 24" |
| Height | 40.75" |
| CFM | 570 CFM |
