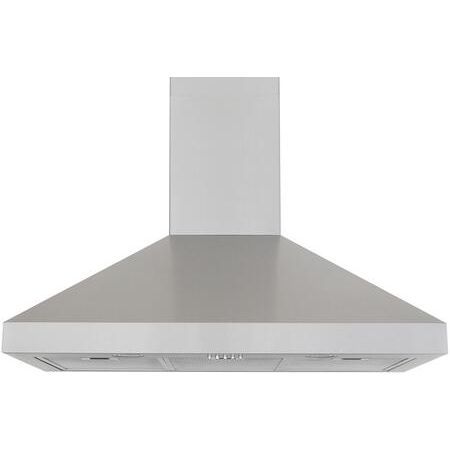

| Windster RA7742SS Appearance |
| Type | Hood |
| Style | Chimney Style |
| Venting Type | Convertible |
| Blower Type | Internal |
| Windster RA7742SS Features |
| Vent Location | Top |
| Duct Type | Round |
| Light | Yes |
| Light Bulb Type | LED |
| Number of Fan Speeds | 3 or More |
| Glass Canopy | No |
| Push Button Control | Yes |
| Aluminum Grease Filter | Yes |
| Stainless Steel Design | Yes |
| Windster RA7742SS Technical Details |
| Color | Stainless Steel |
| Energy Star | No |
| Width | 41.75" |
| Volts | 120 Volts |
| Amps | 20 Amps |
| Approved for Outdoor Use | No |
| Mounting Type | Wall Mount |
| Filter Type | Mesh |
| Commercial | No |
| Frequency | 60 Hz. |
| Warranty Terms | Limited 1 Year Parts and labor, 2 Years for Parts Only |
| UL | No |
| Fan | Yes |
| Recirculating Kit | Sold Separately |
| Duct Diameter | 7" |
| cUL | No |
| Minimum Height | 28.57" |
| Make-Up Air Compliant | Yes |
| Duct Cover Height | 27.375" |
| Number of Light Bulbs | 2 |
| Adjustable Duct Cover | Yes |
| Minimum Duct Cover Height | 15.375" |
| Weight | 90.00 lbs |
| Windster RA7742SS Dimensions |
| Height | 39.57" |
| Exterior Width | 42" |
| Depth | 19.25" |
| CFM | 550 CFM |
