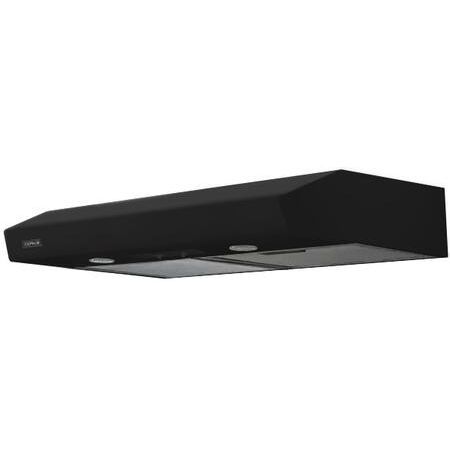

| Zephyr AK1136B Appearance |
| Style | Standard Hood |
| Venting Type | Convertible |
| Blower Type | Internal |
| Zephyr AK1136B Features |
| Vent Location | Top |
| Duct Type | Rectangular |
| Light | Yes |
| Light Bulb Type | Halogen |
| Number of Fan Speeds | 3 or More |
| 3-Speed Fan | Yes |
| Mechanical Slide Controls | Yes |
| Aluminum Mesh Filters | Yes |
| Zephyr AK1136B Technical Details |
| Color | Black |
| Energy Star | No |
| Type | Hood |
| Width | 35.9375" |
| Watts | 142 Watts |
| Control Type | Mechanical Slide |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Approved for Outdoor Use | No |
| Mounting Type | Under Cabinet |
| Filter Type | Mesh |
| Commercial | No |
| Frequency | 60 Hz. |
| UL | No |
| Fan | Yes |
| Sound Level | 3.5 Sones |
| Recirculating Kit | Sold Separately |
| cUL | No |
| Make-Up Air Compliant | Yes |
| Number of Light Bulbs | 2 |
| Duct Length | 3.25" |
| Duct Width | 10" |
| Glass Canopy | No |
| Weight | 27.30 lbs |
| Zephyr AK1136B Dimensions |
| Exterior Width | 36" |
| Height | 5.5" |
| Depth | 20.1" |
| CFM | 250 CFM |
