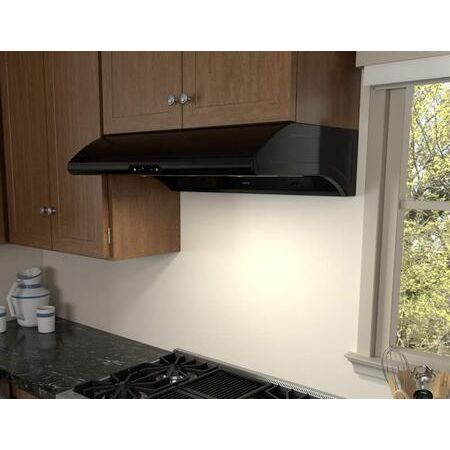

| Zephyr AK2136BB Appearance |
| Type | Hood |
| Mounting Type | Under Cabinet |
| Venting Type | Ducted |
| Style | Standard Hood |
| Blower Type | Internal |
| Zephyr AK2136BB Features |
| Vent Location | Top or Rear |
| Duct Type | Both |
| Number of Fan Speeds | 3 or More |
| Light | Yes |
| Light Bulb Type | Halogen |
| Glass Canopy | No |
| ACT Airflow Control Technology | Yes |
| Zephyr AK2136BB Technical Details |
| Color | Black |
| Energy Star | No |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Approved for Outdoor Use | No |
| Controls | Capacitive Touch |
| Commercial | No |
| Frequency | 60 Hz. |
| Warranty Terms | 1 Year Labor and 10 Years on Parts |
| UL | Yes |
| Fan | Yes |
| Recirculating Kit | No |
| Duct Diameter | 7" |
| Speed Levels | Up to 6 |
| cUL | Yes |
| Auto Delay-Off | Yes |
| Make-Up Air Compliant | Yes |
| Sound Levels | 0.9 - 5 Sones |
| Number of Light Bulbs | 2 |
| Self-Cleaning Mode | Yes |
| Duct Length | 3.25" |
| Duct Width | 10" |
| Vent Locations | Top and Rear |
| Weight | 46.50 lbs |
| Zephyr AK2136BB Dimensions |
| Exterior Width | 36" |
| Height | 7.875" |
| Depth | 20.75" |
| CFM | 850 CFM |
