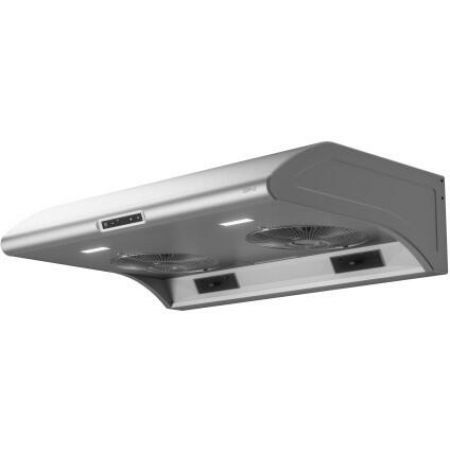

| Zephyr AK2136CS Appearance |
| Style | Standard Hood |
| Venting Type | Ducted |
| Blower Type | Internal |
| Zephyr AK2136CS Features |
| Make-Up Air | Yes |
| MUA Compliant | Yes |
| Vent Location | Top or Rear |
| Duct Type | Both |
| Light | Yes |
| Light Bulb Type | LED |
| Number of Fan Speeds | 3 or More |
| ACT Airflow Control Technology | Yes |
| Delay Off | Yes |
| Electronic Capacitive Touch Controls | Yes |
| LumiLight LED Lighting | Yes |
| Zephyr AK2136CS Technical Details |
| Color | Stainless Steel |
| Type | Hood |
| Width | 35.75" |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Mounting Height | 24-32" |
| Mounting Type | Under Cabinet |
| Frequency | 60 Hz. |
| Warranty Terms | 10 years parts, 1 year labor warranty |
| UL | Yes |
| Fan | Yes |
| Recirculating Kit | No |
| Duct Diameter | 7" |
| cUL | Yes |
| Name | Typhoon |
| Number of Light Bulbs | 2 |
| Programmable Turn Off | Yes |
| Duct Length | 3.25" |
| Duct Width | 10" |
| Weight | 45.40 lbs |
| Zephyr AK2136CS Dimensions |
| Exterior Width | 36" |
| Height | 7.875" |
| Depth | 20.75" |
| CFM | 850 CFM |
