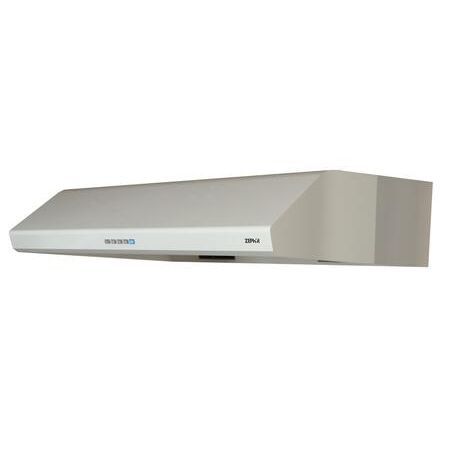

| Zephyr AK2536BW Appearance |
| Style | Standard Hood |
| Venting Type | Ducted |
| Blower Type | Internal |
| Zephyr AK2536BW Features |
| Vent Location | Top or Rear |
| Duct Type | Both |
| Light | Yes |
| Light Bulb Type | Halogen |
| Number of Fan Speeds | 3 or More |
| Electronic Touch Controls | Yes |
| ACT Airflow Control Technology | Yes |
| 3-Speed Fan | Yes |
| Zephyr AK2536BW Technical Details |
| Color | White |
| Energy Star | No |
| Type | Hood |
| Width | 35.875" |
| Control Type | Electronic Touch |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Approved for Outdoor Use | No |
| Mounting Type | Under Cabinet |
| Commercial | No |
| Frequency | 60 Hz. |
| Warranty Terms | 1 Year Labor and 10 Years on Parts |
| UL | No |
| Fan | Yes |
| Sound Level | 5.5 Sones |
| Recirculating Kit | No |
| Duct Diameter | 7" |
| Dual Level Lighting | Yes |
| Number of Fan Speed | 3 |
| cUL | Yes |
| Auto Delay-Off | Yes |
| Number of Light Bulbs | 2 |
| Self-Cleaning Mode | Yes |
| Duct Length | 3.25" |
| Duct Width | 10" |
| Removable Safety Grilles | 2 |
| Glass Canopy | No |
| CFM Limiting | Yes |
| Maximum CFM Reduction | 290 |
| Weight | 39.30 lbs |
| Zephyr AK2536BW Dimensions |
| Exterior Width | 36" |
| Height | 7" |
| Depth | 22.125" |
| CFM | 695 CFM |
