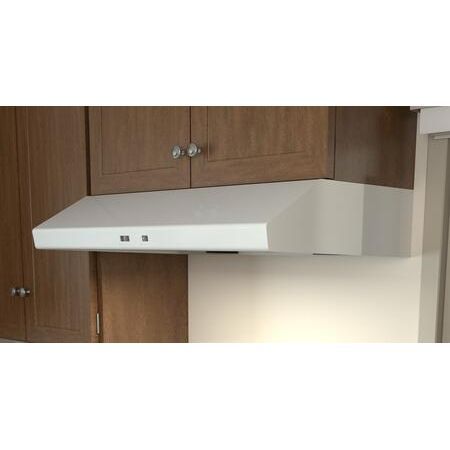

| Zephyr AK6536BW Appearance |
| Style | Standard Hood |
| Venting Type | Ducted |
| Blower Type | Internal |
| Zephyr AK6536BW Features |
| Vent Location | Top or Rear |
| Duct Type | Both |
| Light | Yes |
| Light Bulb Type | Halogen |
| Number of Fan Speeds | 3 or More |
| 3-Speed Fan | Yes |
| Mechanical Slide Controls | Yes |
| Zephyr AK6536BW Technical Details |
| Color | White |
| Energy Star | No |
| Type | Hood |
| Width | 35.75" |
| Control Type | Mechanical Slide |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Approved for Outdoor Use | No |
| Mounting Type | Under Cabinet |
| Commercial | No |
| Frequency | 60 Hz. |
| Warranty Terms | 10 Years on Parts, 1 Year Labor |
| UL | Yes |
| Fan | Yes |
| Sound Level | 5 Sones |
| Recirculating Kit | No |
| Duct Diameter | 6" |
| cUL | Yes |
| Number of Light Bulbs | 2 |
| Self-Cleaning Mode | Yes |
| Duct Length | 3.25" |
| Duct Width | 10" |
| Removable Safety Grilles | Yes |
| Glass Canopy | No |
| Weight | 37.50 lbs |
| Zephyr AK6536BW Dimensions |
| Exterior Width | 36" |
| Height | 6.375" |
| Depth | 22.25" |
| CFM | 600 CFM |
