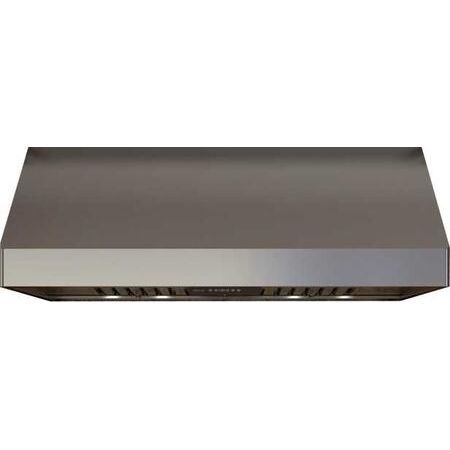

| Zephyr AK7554BS Appearance |
| Style | Canopy Pro Style |
| Venting Type | Ducted |
| Blower Type | Internal |
| Zephyr AK7554BS Features |
| Vent Location | Top or Rear |
| Duct Type | Both |
| Light | Yes |
| Light Bulb Type | Halogen |
| Number of Fan Speeds | 3 or More |
| Pro-Baffle Filters | Yes |
| Electronic Touch Controls | Yes |
| ACT Airflow Control Technology | Yes |
| Zephyr AK7554BS Technical Details |
| Color | Stainless Steel |
| Energy Star | No |
| Type | Hood |
| Width | 53.875" |
| Control Type | Electronic Touch |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Approved for Outdoor Use | No |
| Mounting Type | Wall Mount |
| Filter Type | Baffle |
| Commercial | No |
| Frequency | 60 Hz. |
| Warranty Terms | 3 Years on Parts, 1 Year Labor |
| UL | Yes |
| Fan | Yes |
| Sound Level | 6 Sones |
| Recirculating Kit | Sold Separately |
| Duct Diameter | 8" |
| Pro-Style | Yes |
| Dual Level Lighting | Yes |
| cUL | Yes |
| Auto Delay-Off | Yes |
| Make-Up Air Compliant | Yes |
| Duct Length | 3.25" |
| Duct Width | 10" |
| Glass Canopy | No |
| CFM Limiting | Yes |
| Maximum CFM Reduction | 290 CFM |
| Weight | 102.50 lbs |
| Zephyr AK7554BS Dimensions |
| Exterior Width | 54" |
| Height | 18" |
| Depth | 24" |
| CFM | 650 CFM |
