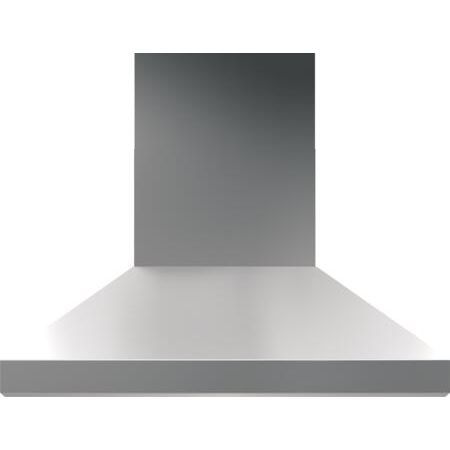

| Zephyr AK7648BS Appearance |
| Type | Hood |
| Style | Chimney Style |
| Venting Type | Ducted |
| Blower Type | Internal |
| ADA Compliant | Yes |
| Zephyr AK7648BS Features |
| Remote Controller | Included |
| Vent Location | Top or Rear |
| Duct Type | Round |
| Light | Yes |
| Light Bulb Type | LED |
| Number of Fan Speeds | 3 or More |
| Glass Canopy | No |
| Pro-Baffle Filters | Yes |
| ACT Airflow Control Technology | Yes |
| Wireless Remote Controller | Yes |
| PowerWave | Yes |
| LumiLight LED Lighting | Yes |
| Delay Off | Yes |
| UL Certification | Yes |
| Zephyr AK7648BS Technical Details |
| Color | Stainless Steel |
| Width | 47.9375" |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Mounting Height | 24"-36" |
| Mounting Type | Wall Mount |
| Filter Type | Baffle |
| Frequency | 60 Hz. |
| Warranty Terms | 3 years parts, 1 year labor warranty |
| UL | Yes |
| Fan | Yes |
| Duct Diameter | 8" |
| Pro-Style | Yes |
| cUL | Yes |
| Name | Titan |
| Number of Light Bulbs | 4 |
| Programmable Turn Off | Yes |
| Adjustable Duct Cover | Yes |
| Minimum Duct Cover Height | 30" |
| Weight | 90.00 lbs |
| Zephyr AK7648BS Dimensions |
| Height | 42.5" |
| Exterior Width | 48" |
| Depth | 24" |
| CFM | 750 CFM |
