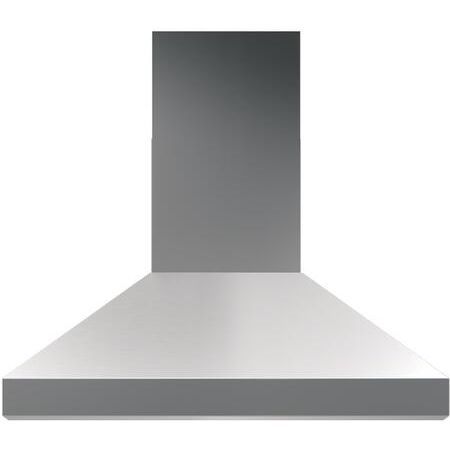

| Zephyr AK7742AS Appearance |
| Type | Hood |
| Venting Type | Ducted |
| Blower Type | Internal |
| ADA Compliant | Yes (w/ remote accessory) |
| Zephyr AK7742AS Features |
| Number of Fan Speeds | 3 or More |
| Duct Type | Round |
| Vent Location | Top |
| Glass Canopy | No |
| Electronic LCD Controls | Yes |
| Pro-Baffle Filters | Yes |
| ACT Airflow Control Technology | Yes |
| UL Certification | Yes |
| LED Lighting | Yes |
| PowerWave | Yes |
| Stainless Steel Grease Filters | Yes |
| Zephyr AK7742AS Technical Details |
| Color | Stainless Steel |
| Energy Star | No |
| Width | 41.937" |
| Remote Control | Yes, Optional |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Light | Yes |
| Mounting Type | Island Mount |
| Filter Type | Baffle |
| Frequency | 60 Hz |
| Warranty Terms | 3 years parts, 1 year labor |
| UL | Yes |
| Dual-Level Lighting | Yes |
| Recirculating Kit | No |
| Duct Diameter | 8" |
| Speed Levels | 6 |
| Recirculating Option | No |
| Duct Cover Extension Option | Yes |
| cUL | Yes |
| Auto Delay-Off | Yes |
| Number of Light Bulbs | 2 |
| Light Bulb Type | LED |
| CleanAir Function | Yes |
| ACT Technology | Yes |
| Grease Collection Tray | Yes |
| Make-Up Air Kit | Optional |
| Duct Cover Extension Kit | Optional |
| Weight | 135.60 lbs |
| Zephyr AK7742AS Dimensions |
| Exterior Width | 42" |
| Depth | 31.625" |
| Height | 50" |
| CFM | 750 |
