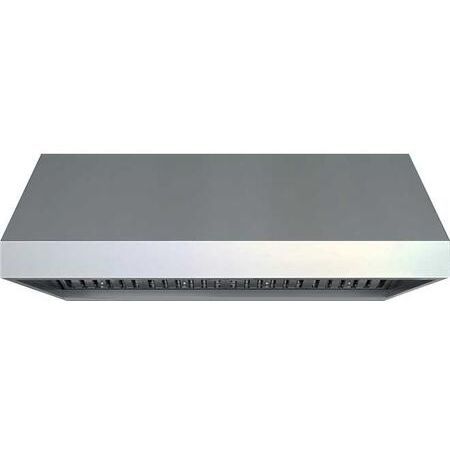

| Zephyr AK7842BS Appearance |
| Type | Hood |
| Style | Canopy Pro Style |
| Venting Type | Ducted |
| Blower Type | Internal |
| Zephyr AK7842BS Features |
| Vent Location | Top or Rear |
| Duct Type | Round |
| Light | Yes |
| Light Bulb Type | Halogen |
| Number of Fan Speeds | 3 or More |
| Glass Canopy | No |
| Dishwasher-Safe Filter | Yes |
| 3-Speed Fan | Yes |
| Pro-Baffle Filters | Yes |
| Zephyr AK7842BS Technical Details |
| Color | Stainless Steel |
| Energy Star | No |
| Width | 41.875" |
| Control Type | Metallic Knobs |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Mounting Type | Wall Mount |
| Filter Type | Baffle |
| Commercial | No |
| Frequency | 60 Hz. |
| Warranty Terms | 3 Years on Parts, 1 Year Labor |
| UL | Yes |
| Fan | Yes |
| Sound Level | 9 Sones |
| Recirculating Kit | No |
| Duct Diameter | 10" |
| Dual Level Lighting | Yes |
| cUL | Yes |
| Make-Up Air Compliant | No |
| Number of Light Bulbs | 2 |
| Weight | 109.90 lbs |
| Zephyr AK7842BS Dimensions |
| Height | 22.3125" |
| Exterior Width | Varies |
| Depth | 32" |
| CFM | 1200 CFM |
