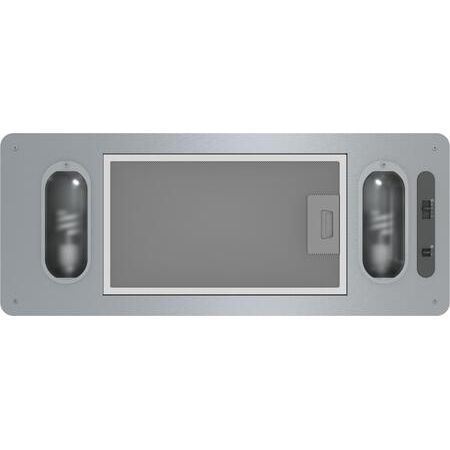

| Zephyr AK8000ASES Appearance |
| Venting Type | Ducted |
| Blower Type | Internal |
| Filter Type | Mesh |
| Zephyr AK8000ASES Features |
| Number of Fan Speeds | 3 or More |
| Mechanical Slide Controls | Yes |
| Aluminum Mesh Filters | Yes |
| Zephyr AK8000ASES Technical Details |
| Color | Stainless Steel |
| Energy Star | Yes |
| Type | Cabinet Insert |
| Width | 27.5625" |
| Control Type | Mechanical Slide |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Light | Yes |
| Mounting Type | Under Cabinet |
| Frequency | 60 Hz. |
| Warranty Terms | 3 Years on Parts, 1 Year Labor |
| UL | Yes |
| Fan | Yes |
| Vent Location | Top |
| Recirculating Kit | No |
| Duct Diameter | 6" |
| Duct Type | Round |
| cUL | Yes |
| Number of Filters | 1 |
| Number of Light Bulbs | 2 |
| Light Bulb Type | Fluorescent |
| Weight | 23.10 lbs |
| Zephyr AK8000ASES Dimensions |
| Exterior Width | 27" |
| Height | 10.5" |
| Depth | 11.1875" |
| CFM | 290 CFM |
