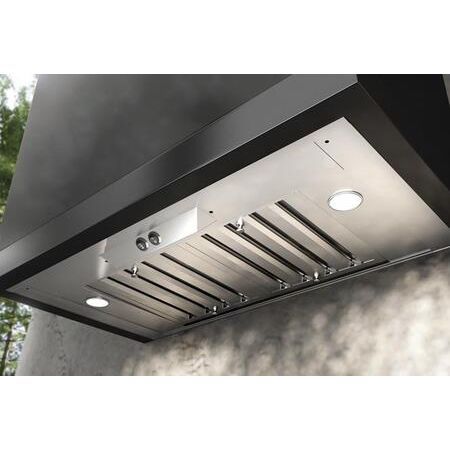

| Zephyr AK8800AG Appearance |
| Venting Type | Ducted |
| Blower Type | Internal |
| Filter Type | Baffle |
| Zephyr AK8800AG Features |
| Number of Fan Speeds | 2 |
| Pro-Baffle Filters | Yes |
| Dishwasher-Safe Filter | Yes |
| Zephyr AK8800AG Technical Details |
| Color | Grey Powered Coated |
| Type | Cabinet Insert |
| Width | 29.8125" |
| Control Type | Rocker Switch |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Approved for Outdoor Use | Yes |
| Light | Yes |
| Minimum Depth | 17.5" |
| Mounting Type | Under Cabinet |
| Frequency | 60 Hz. |
| Warranty Terms | 3 Years on Parts, 1 Year Labor |
| UL | Yes |
| Fan | Yes |
| Sound Level | 8 Sones |
| Vent Location | Top |
| Recirculating Kit | No |
| Duct Diameter | 8" |
| Duct Type | Round |
| cUL | Yes |
| Number of Light Bulbs | 2 |
| Light Bulb Type | Halogen |
| Weight | 55.00 lbs |
| Zephyr AK8800AG Dimensions |
| Exterior Width | 29" |
| Height | 11.4375" |
| Depth | 15.8125" |
| CFM | 1000 CFM |
