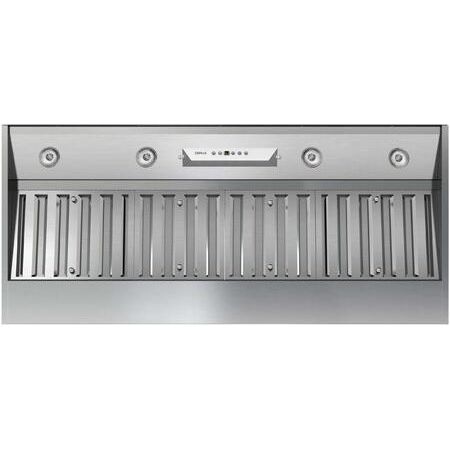

| Zephyr AK9346AS Appearance |
| Type | Cabinet Insert |
| Color | Stainless Steel |
| Zephyr AK9346AS Details |
| Duct Type | Round |
| Venting Type | Ducted |
| Blower Type | Internal |
| Mounting Type | Under Cabinet |
| Vent Location | Top |
| CFM | 1200 CFM |
| Make-Up Air | Yes |
| Number of Light Bulbs | 4 |
| Light Bulb Type | Halogen |
| Number of Fan Speeds | 3 or More |
| Recirculating Kit | No |
| Filter Type | Baffle |
| Fan | Yes |
| Light | Yes |
| Zephyr AK9346AS Electrical Specifications |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Frequency | 60 Hz. |
| Zephyr AK9346AS Certification |
| cUL | Yes |
| UL | Yes |
| Zephyr AK9346AS Features |
| Remote Controller | Included |
| Pro-Baffle Filters | Yes |
| UL Certification | Yes |
| Electronic Touch Controls | Yes |
| Wireless Remote Controller | Yes |
| ACT Airflow Control Technology | Yes |
| Zephyr AK9346AS Technical Details |
| Control Type | Electronic LCD |
| ADA Compliant | Yes |
| Warranty Terms | 3 Years on Parts, 1 Year Labor |
| Sound Level | 9 Sones |
| Luxury | Yes |
| Programmable Turn Off | Yes |
| Weight | 60 lbs |
| Zephyr AK9346AS Dimensions |
| Exterior Width | 48" |
| Duct Diameter | 10" |
| Height | 12" |
| Depth | 22.5" |
| Width | 46.375" |
