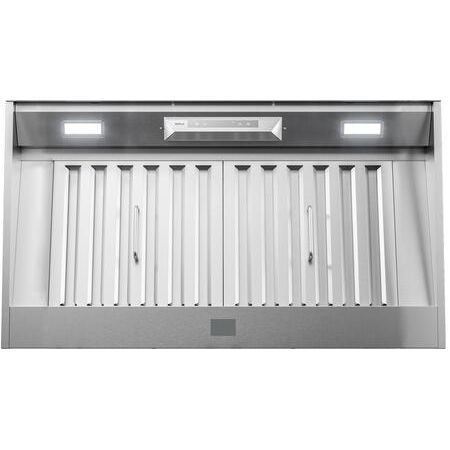

| Zephyr AK9434BS Appearance |
| Venting Type | Ducted |
| Blower Type | Internal |
| Filter Type | Baffle |
| ADA Compliant | Yes |
| Zephyr AK9434BS Smart Features |
| Wi-Fi | Yes |
| Smart Appliance | Yes |
| Works with Alexa | Yes |
| Works with Google Assistant | Yes |
| Works with Brand Specific App | Yes |
| Zephyr AK9434BS Features |
| Remote Controller | Optional |
| Number of Fan Speeds | 3 or More |
| Pro-Baffle Filters | Yes |
| ACT Airflow Control Technology | Yes |
| UL Certification | Yes |
| PowerWave | Yes |
| LumiLight LED Lighting | Yes |
| Zephyr Connect App | Yes |
| Zephyr AK9434BS Technical Details |
| Color | Stainless Steel |
| Type | Cabinet Insert |
| Width | 34.375" |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Light | Yes |
| Mounting Height | 24" - 36" |
| Mounting Type | Under Cabinet |
| Frequency | 60 Hz. |
| Warranty Terms | 3 years parts, 1 year labor warranty |
| UL | Yes |
| Fan | Yes |
| Vent Location | Top or Rear |
| Recirculating Kit | No |
| Duct Diameter | 8" |
| Duct Type | Round |
| cUL | Yes |
| Name | Monsoon Connect |
| Number of Light Bulbs | 2 |
| Light Bulb Type | LED |
| Programmable Turn Off | Yes |
| Remote Diagnostics | Yes |
| Remote Monitoring | Yes |
| Weight | 56.00 lbs |
| Zephyr AK9434BS Dimensions |
| Exterior Width | 36" |
| Height | 12" |
| Depth | 19.25" |
| CFM | 700 CFM |
