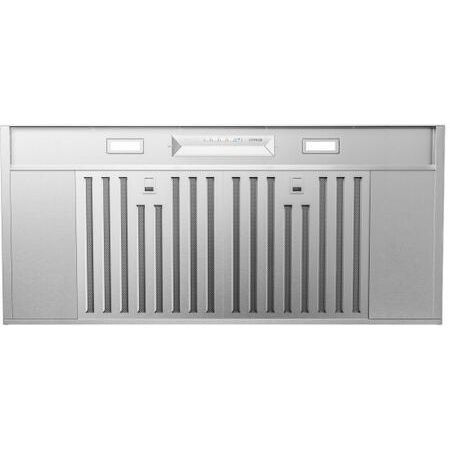

| Zephyr AK9540AS Appearance |
| Venting Type | Convertible |
| Blower Type | Internal |
| Filter Type | Baffle |
| Zephyr AK9540AS Features |
| Number of Fan Speeds | 3 or More |
| Electronic Touch Controls | Yes |
| ACT Airflow Control Technology | Yes |
| UL Certification | Yes |
| Hybrid Baffle Filters | Yes |
| LumiLight LED Lighting | Yes |
| Delay Off | Yes |
| Zephyr AK9540AS Technical Details |
| Color | Stainless Steel |
| Type | Cabinet Insert |
| Width | 40.375" |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Light | Yes |
| Mounting Height | 24" - 36" |
| Mounting Type | Under Cabinet |
| Frequency | 60 Hz. |
| Warranty Terms | 3 years parts, 1 year labor warranty |
| UL | Yes |
| Fan | Yes |
| Vent Location | Top or Rear |
| Recirculating Kit | Sold Separately |
| Duct Diameter | 7" |
| Duct Type | Both |
| cUL | Yes |
| Name | Monsoon Mini II |
| Number of Light Bulbs | 2 |
| Light Bulb Type | LED |
| Programmable Turn Off | Yes |
| Duct Length | 3.25" |
| Duct Width | 10" |
| Convertible Ducting | Yes |
| Weight | 40.00 lbs |
| Zephyr AK9540AS Dimensions |
| Exterior Width | 42" |
| Height | 6.125" |
| Depth | 18.0625" |
| CFM | 600 CFM |
