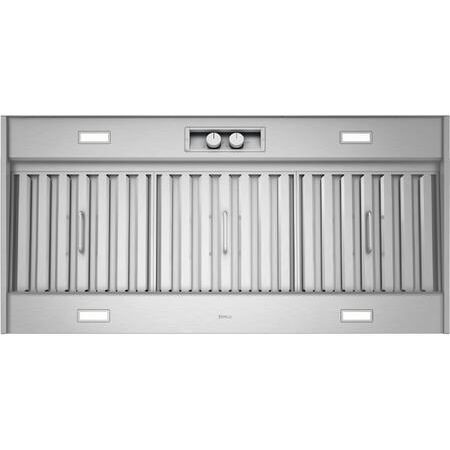

| Zephyr AK9846BS Appearance |
| Venting Type | Ducted |
| Blower Type | Internal |
| Filter Type | Baffle |
| Zephyr AK9846BS Features |
| Number of Fan Speeds | 3 or More |
| Pro-Baffle Filters | Yes |
| UL Certification | Yes |
| LumiLight LED Lighting | Yes |
| Zephyr AK9846BS Technical Details |
| Color | Stainless Steel |
| Type | Cabinet Insert |
| Width | 46.375" |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Approved for Outdoor Use | Yes |
| Light | Yes |
| Mounting Height | 30" - 36" |
| Mounting Type | Under Cabinet |
| Frequency | 60 Hz. |
| Warranty Terms | 3 years parts, 1 year labor |
| UL | Yes |
| Fan | Yes |
| Vent Location | Top |
| Recirculating Kit | No |
| Duct Diameter | 10" |
| Pro-Style | Yes |
| Duct Type | Round |
| cUL | Yes |
| Name | Spruce |
| Number of Light Bulbs | 4 |
| Light Bulb Type | LED |
| Weight | 65.00 lbs |
| Zephyr AK9846BS Dimensions |
| Exterior Width | 48" |
| Height | 12" |
| Depth | 22.5" |
| CFM | 1200 CFM |
