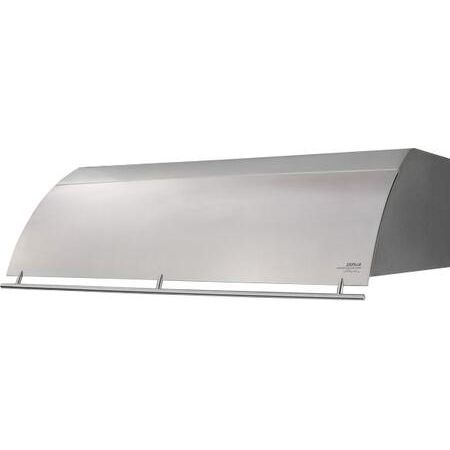

| Zephyr CCAE48ASX Appearance |
| Venting Type | Ducted |
| Blower Type | Blower not Included |
| Zephyr CCAE48ASX Features |
| Vent Location | Top |
| Duct Type | Round |
| Light | Yes |
| Light Bulb Type | Halogen |
| Number of Fan Speeds | 3 or More |
| Pro-Baffle Filters | Yes |
| Electronic Touch Controls | Yes |
| 3-Speed Fan | Yes |
| Zephyr CCAE48ASX Technical Details |
| Color | Stainless Steel |
| Energy Star | No |
| Type | Hood |
| Width | 47.91" |
| Control Type | Electronic Touch |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Approved for Outdoor Use | No |
| Mounting Type | Under Cabinet |
| Filter Type | Baffle |
| Commercial | No |
| Frequency | 60 Hz. |
| Warranty Terms | 3 Years on Parts, 1 Year Labor |
| UL | No |
| Recirculating Kit | No |
| Duct Diameter | 6" or 8" |
| Dual Level Lighting | Yes |
| cUL | No |
| Auto Delay-Off | Yes |
| Make-Up Air Compliant | Yes |
| Number of Light Bulbs | 2 |
| Glass Canopy | No |
| Weight | 67.24 lbs |
| Zephyr CCAE48ASX Dimensions |
| Exterior Width | 48" |
| Height | 10.375" |
| Depth | 22.125" |
| CFM | 1000 CFM |
