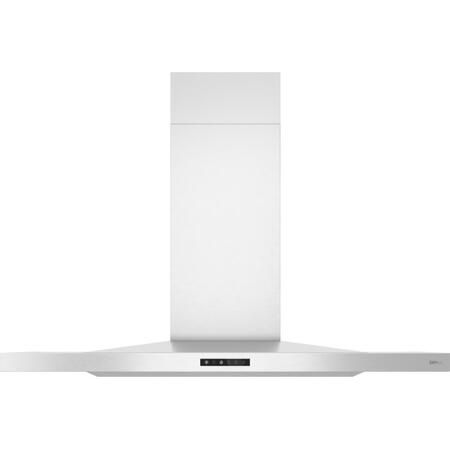

| Zephyr DLAM90ASSX Appearance |
| Type | Hood |
| Style | Chimney Style |
| Venting Type | Convertible |
| Blower Type | Blower not Included |
| Zephyr DLAM90ASSX Features |
| Remote Controller | Optional |
| Vent Location | Top |
| Duct Type | Round |
| Light | Yes |
| Light Bulb Type | LED |
| Number of Fan Speeds | 3 or More |
| Glass Canopy | No |
| Delay Off | Yes |
| UL Certification | Yes |
| Aluminum Mesh Filters | Yes |
| LED Lighting | Yes |
| Perimeter Aspiration | Yes |
| Zephyr DLAM90ASSX Technical Details |
| Color | Stainless Steel |
| Width | 35.375" |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Mounting Height | 24" - 36" |
| Mounting Type | Wall Mount |
| Filter Type | Mesh |
| Frequency | 60 Hz. |
| Warranty Terms | 2 year parts, 1 year labor warranty |
| UL | Yes |
| Fan | Yes |
| Recirculating Kit | Sold Separately |
| Duct Diameter | 6", 8" or 10" |
| cUL | Yes |
| Name | Layers |
| Number of Light Bulbs | 4 |
| Programmable Turn Off | Yes |
| Adjustable Duct Cover | Yes |
| Minimum Duct Cover Height | 27" |
| Convertible Ducting | Yes |
| Weight | 50.00 lbs |
| Zephyr DLAM90ASSX Dimensions |
| Height | 44.5" |
| Exterior Width | 36" |
| Depth | 22" |
| CFM | 1000 CFM |
