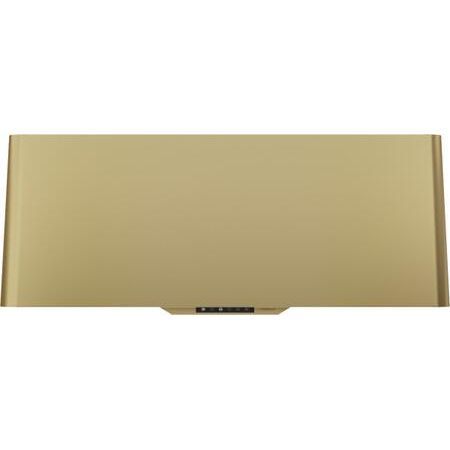

| Zephyr DMEM90ASGX Appearance |
| Type | Hood |
| Style | Standard Hood |
| Venting Type | Convertible |
| Blower Type | Blower not Included |
| Zephyr DMEM90ASGX Features |
| Remote Controller | Optional |
| Vent Location | Top or Rear |
| Duct Type | Round |
| Light | Yes |
| Light Bulb Type | LED |
| Number of Fan Speeds | 3 or More |
| Glass Canopy | No |
| UL Certification | Yes |
| LED Lighting | Yes |
| Hybrid Baffle Filters | Yes |
| Delay Off | Yes |
| Zephyr DMEM90ASGX Technical Details |
| Color | Satin Gold |
| Width | 35.375" |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Mounting Height | 24" - 36" |
| Mounting Type | Wall Mount |
| Filter Type | Baffle |
| Frequency | 60 Hz. |
| Warranty Terms | 2 year parts, 1 year labor warranty |
| UL | Yes |
| Fan | Yes |
| Recirculating Kit | Sold Separately |
| Duct Diameter | 6", 8" or 10" |
| cUL | Yes |
| Name | Mesa |
| Number of Light Bulbs | 2 |
| Programmable Turn Off | Yes |
| Convertible Ducting | Yes |
| Weight | 50.00 lbs |
| Zephyr DMEM90ASGX Dimensions |
| Height | 13.8125" |
| Exterior Width | 36" |
| Depth | 19.6875" |
| CFM | 1000 CFM |
