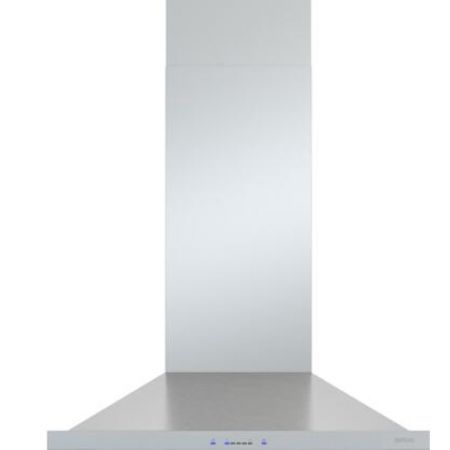

| Zephyr ZANE24DS Appearance |
| Type | Hood |
| Style | Chimney Style |
| Venting Type | Convertible |
| Blower Type | Internal |
| ADA Compliant | Capable |
| Zephyr ZANE24DS Features |
| Remote Controller | Optional |
| Vent Location | Top |
| Duct Type | Round |
| Light | Yes |
| Light Bulb Type | LED |
| Number of Fan Speeds | 3 or More |
| Glass Canopy | No |
| ACT Airflow Control Technology | Yes |
| UL Certification | Yes |
| Aluminum Mesh Filters | Yes |
| LumiLight LED Lighting | Yes |
| Delay Off | Yes |
| Zephyr ZANE24DS Technical Details |
| Color | Stainless Steel |
| Width | 23.875" |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Mounting Height | 26" - 34" |
| Mounting Type | Wall Mount |
| Filter Type | Mesh |
| Frequency | 60 Hz. |
| Warranty Terms | 3 years parts, 1 year labor warranty |
| UL | Yes |
| Fan | Yes |
| Recirculating Kit | Sold Separately |
| Duct Diameter | 6" |
| cUL | Yes |
| Name | Anzio |
| Number of Light Bulbs | 1 |
| Programmable Turn Off | Yes |
| Adjustable Duct Cover | Yes |
| Minimum Duct Cover Height | 27" |
| Convertible Ducting | Yes |
| Weight | 50.00 lbs |
| Zephyr ZANE24DS Dimensions |
| Height | 48" |
| Exterior Width | 24" |
| Depth | 22.0625" |
| CFM | 600 CFM |
