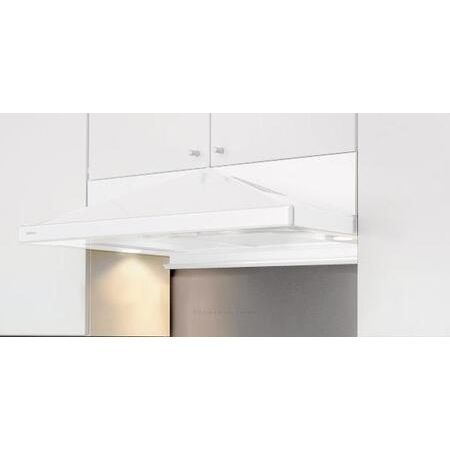

| Zephyr ZPYE36AW Appearance |
| Style | Standard Hood |
| Venting Type | Ducted |
| Blower Type | Internal |
| Zephyr ZPYE36AW Features |
| Vent Location | Top |
| Duct Type | Both |
| Light | Yes |
| Light Bulb Type | Halogen |
| Number of Fan Speeds | 3 or More |
| Zephyr ZPYE36AW Technical Details |
| Color | White |
| Energy Star | No |
| Type | Hood |
| Width | 35.9375" |
| Control Type | Mechanical Slide |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Approved for Outdoor Use | No |
| Mounting Type | Under Cabinet |
| Filter Type | Mesh |
| Commercial | No |
| Frequency | 60 Hz. |
| Warranty Terms | 3 Years on Parts and 1 Year Labor |
| UL | Yes |
| Fan | Yes |
| Sound Level | 5 Sones |
| Recirculating Kit | Sold Separately |
| Duct Diameter | 7" |
| Dual Level Lighting | Yes |
| cUL | Yes |
| Number of Filters | 2 |
| Make-Up Air Compliant | Yes |
| Number of Light Bulbs | 2 |
| Duct Length | 3.25" |
| Duct Width | 10" |
| Glass Canopy | No |
| Weight | 90.00 lbs |
| Zephyr ZPYE36AW Dimensions |
| Exterior Width | 36" |
| Height | 7.375" |
| Depth | 21" |
| CFM | 400 CFM |
