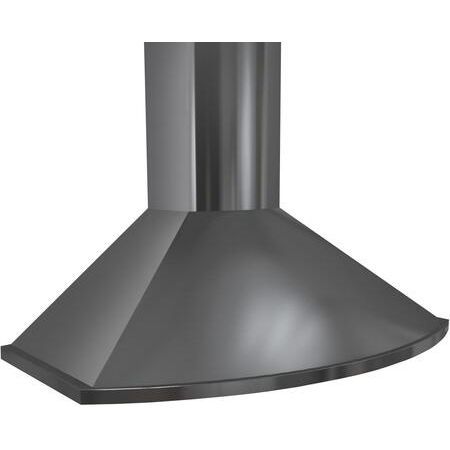

| Zephyr ZSAE30DBS Appearance |
| Type | Hood |
| Style | Chimney Style |
| Venting Type | Convertible |
| Blower Type | Internal |
| Zephyr ZSAE30DBS Features |
| Vent Location | Top |
| Duct Type | Round |
| Light | Yes |
| Light Bulb Type | LED |
| Number of Fan Speeds | 3 or More |
| Glass Canopy | No |
| ACT Airflow Control Technology | Yes |
| Aluminum Mesh Filters | Yes |
| Zephyr ZSAE30DBS Technical Details |
| Color | Black Stainless Steel |
| Energy Star | No |
| Width | 29.9375" |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Approved for Outdoor Use | No |
| Mounting Type | Wall Mount |
| Filter Type | Mesh |
| Commercial | No |
| Frequency | 60 Hz. |
| Warranty Terms | 3 Years on Parts, 1 Year Labor |
| UL | Yes |
| Fan | Yes |
| Sound Level | 6 Sones |
| Recirculating Kit | Sold Separately |
| Duct Diameter | 6" |
| Dual Level Lighting | Yes |
| cUL | Yes |
| Auto Delay-Off | Yes |
| Make-Up Air Compliant | Yes |
| CFM Limiting | Yes |
| Maximum CFM Reduction | 290 CFM |
| Weight | 41.90 lbs |
| Zephyr ZSAE30DBS Dimensions |
| Height | 45" |
| Exterior Width | 30" |
| Depth | 19.5" |
| CFM | 685 CFM |
