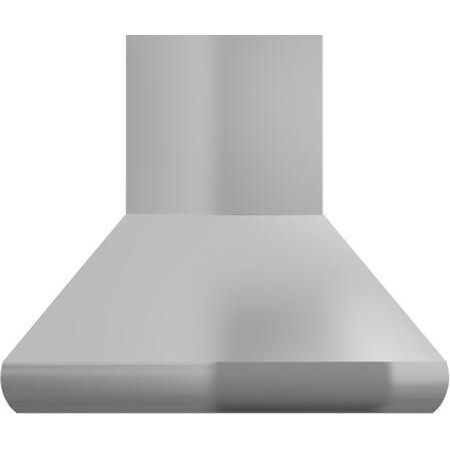

| ZLINE 687RD36 Appearance |
| Type | Hood |
| Style | Chimney Style |
| Venting Type | Ducted |
| Blower Type | External |
| ZLINE 687RD36 Features |
| Vent Location | Top |
| Duct Type | Round |
| Light | Yes |
| Light Bulb Type | LED |
| Number of Fan Speeds | 3 or More |
| Glass Canopy | No |
| Timer | Yes |
| Stainless Steel Baffle Filter | Yes |
| ZLINE 687RD36 Technical Details |
| Color | Stainless Steel |
| Energy Star | No |
| Width | 36" |
| Volts | 110 Volts |
| Amps | 15 Amps |
| Approved for Outdoor Use | No |
| Sones | 5.3 |
| Mounting Height | 30-36" |
| Mounting Type | Wall Mount |
| Filter Type | Baffle |
| Commercial | No |
| Frequency | 60 Hz. |
| Warranty Terms | 3 Year Parts |
| Fan | Yes |
| Noise Level | 52 dBA |
| Recirculating Kit | No |
| Duct Diameter | 8" |
| Make-Up Air Compliant | No |
| Duct Cover Height | 32" |
| Number of Light Bulbs | 2 |
| Programmable Turn Off | Yes |
| Adjustable Duct Cover | Yes |
| Minimum Duct Cover Height | 34" |
| Maximum Duct Cover Height | 50" |
| Weight | 60.00 lbs |
| ZLINE 687RD36 Dimensions |
| Height | 18" |
| Exterior Width | 36" |
| Depth | 24" |
| CFM | 700 CFM |
