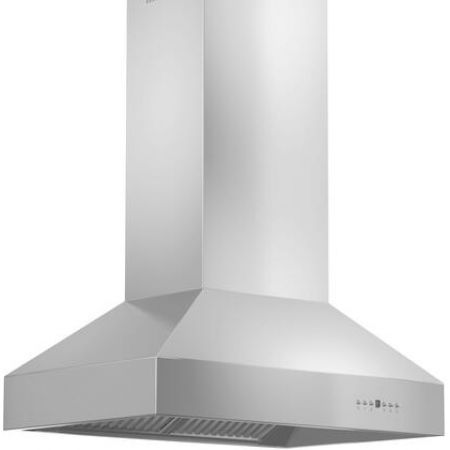

| ZLINE 697I30442 Appearance |
| Type | Hood |
| Venting Type | Ducted |
| Style | Chimney Style |
| Blower Type | Internal |
| ZLINE 697I30442 Features |
| Number of Fan Speeds | 3 or More |
| Duct Type | Round |
| Vent Location | Top |
| Glass Canopy | No |
| Push Button Control | Yes |
| Stainless Steel Baffle Filter | Yes |
| ZLINE 697I30442 Technical Details |
| Color | Stainless Steel |
| Energy Star | No |
| Width | 42" |
| Volts | 110 Volts |
| Amps | 15 Amps |
| Approved for Outdoor Use | Yes |
| Sones | 5.3 |
| Light | Yes |
| Mounting Height | 30" - 36" |
| Mounting Type | Island Mount |
| Filter Type | Baffle |
| Commercial | No |
| Frequency | 60 Hz. |
| Fan | Yes |
| Noise Level | 52 dBA |
| Recirculating Kit | No |
| Duct Cover Width | 20.75" |
| Duct Cover Depth | 12" |
| Make-Up Air Compliant | No |
| Duct Cover Height | 38" |
| Number of Light Bulbs | 3 |
| Light Bulb Type | LED |
| Programmable Turn Off | Yes |
| Weight | 80.00 lbs |
| ZLINE 697I30442 Dimensions |
| Exterior Width | 42" |
| Depth | 27.6" |
| Height | 12.4" |
| CFM | 1200 CFM |
