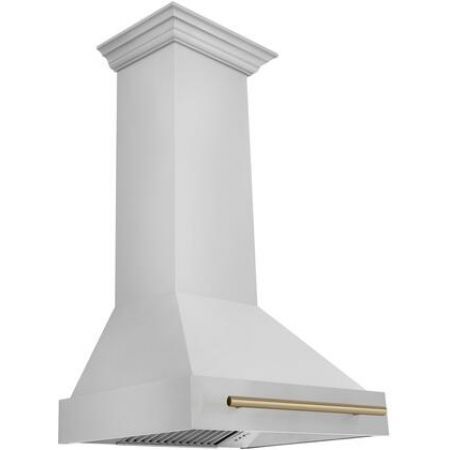

| ZLINE 8654STZ30CB Appearance |
| Type | Hood |
| Style | Chimney Style |
| Venting Type | Ducted |
| Blower Type | Internal |
| ZLINE 8654STZ30CB Features |
| Vent Location | Top |
| Duct Type | Round |
| Light | Yes |
| Light Bulb Type | LED |
| Number of Fan Speeds | 3 or More |
| Glass Canopy | No |
| Delay Off | Yes |
| Baffle Filters | Yes |
| ETL | Yes |
| ZLINE 8654STZ30CB Technical Details |
| Color | Stainless Steel |
| Width | 30" |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Mounting Type | Wall Mount |
| Filter Type | Baffle |
| Frequency | 60 Hz. |
| Warranty Terms | 3 year parts warranty, life-time motor warranty |
| Trim | Champagne Bronze |
| Fan | Yes |
| Duct Diameter | 6" |
| Number of Light Bulbs | 2 |
| Programmable Turn Off | Yes |
| Weight | 60.00 lbs |
| ZLINE 8654STZ30CB Dimensions |
| Height | 51.5" |
| Exterior Width | 30" |
| Depth | 23.75" |
| CFM | 400 CFM |
