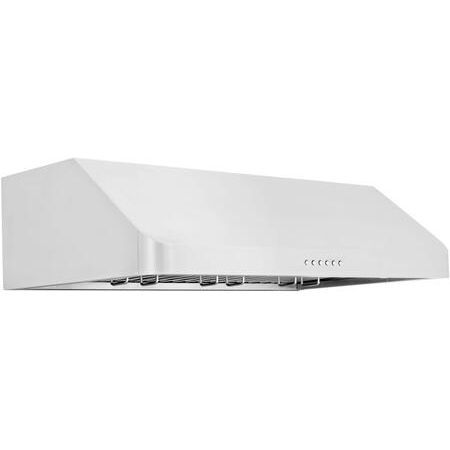

| ZLINE ALP10UC48 Appearance |
| Style | Canopy Pro Style |
| Venting Type | Ducted |
| Blower Type | Internal |
| ADA Compliant | Yes |
| ZLINE ALP10UC48 Features |
| Vent Location | Top |
| Duct Type | Round |
| Light | Yes |
| Light Bulb Type | LED |
| Number of Fan Speeds | 3 or More |
| Delay Off | Yes |
| Stainless Steel Baffle Filter | Yes |
| ETL | Yes |
| ZLINE ALP10UC48 Technical Details |
| Color | Stainless Steel |
| Type | Hood |
| Width | 48" |
| Volts | 110 Volts |
| Amps | 15 Amps |
| Mounting Height | 30" - 36" |
| Mounting Type | Under Cabinet |
| Filter Type | Baffle |
| Frequency | 60 Hz. |
| Warranty Terms | 3 Year Parts Warranty |
| Fan | Yes |
| Duct Diameter | 8" |
| Remote Controller | Included |
| Number of Light Bulbs | 2 |
| Programmable Turn Off | Yes |
| Glass Canopy | No |
| Weight | 50.00 lbs |
| ZLINE ALP10UC48 Dimensions |
| Exterior Width | 48" |
| Height | 10" |
| Depth | 22" |
| CFM | 500 CFM |
