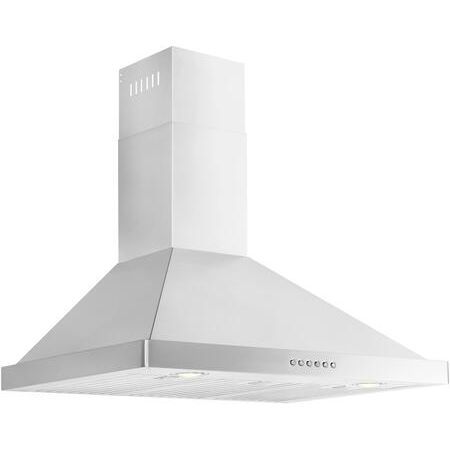

| ZLINE ALP10WL30 Appearance |
| Type | Hood |
| Style | Chimney Style |
| Venting Type | Ducted |
| Blower Type | Internal |
| ADA Compliant | Yes |
| ZLINE ALP10WL30 Features |
| Remote Controller | Included |
| Vent Location | Top |
| Duct Type | Round |
| Light | Yes |
| Light Bulb Type | LED |
| Number of Fan Speeds | 3 or More |
| Glass Canopy | No |
| Delay Off | Yes |
| Stainless Steel Baffle Filter | Yes |
| ETL | Yes |
| ZLINE ALP10WL30 Technical Details |
| Color | Stainless Steel |
| Width | 30" |
| Volts | 110 Volts |
| Amps | 15 Amps |
| Mounting Height | 30" - 36" |
| Mounting Type | Wall Mount |
| Filter Type | Baffle |
| Frequency | 60 Hz. |
| Warranty Terms | 3 Year Parts Warranty |
| Fan | Yes |
| Duct Diameter | 6" |
| Duct Cover Height | 32" |
| Number of Light Bulbs | 2 |
| Programmable Turn Off | Yes |
| Adjustable Duct Cover | Yes |
| Weight | 40.00 lbs |
| ZLINE ALP10WL30 Dimensions |
| Height | 48" |
| Exterior Width | 30" |
| Depth | 19.75" |
| CFM | 400 CFM |
