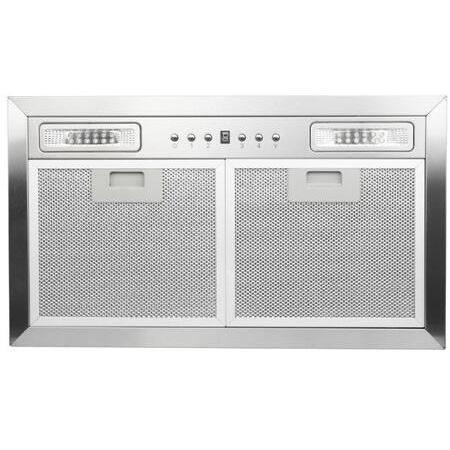

| ZLINE E690 Appearance |
| Venting Type | Ducted |
| Blower Type | Internal |
| Filter Type | Mesh |
| ZLINE E690 Features |
| Number of Fan Speeds | 3 or More |
| Timer | Yes |
| Aluminum Mesh Filters | Yes |
| ZLINE E690 Technical Details |
| Color | Stainless Steel |
| Type | Cabinet Insert |
| Width | 20.5" |
| Volts | 110 Volts |
| Amps | 15 Amps |
| Light | Yes |
| Mounting Height | 30-36" |
| Mounting Type | Under Cabinet |
| Frequency | 60 Hz. |
| Warranty Terms | 3 Year Parts |
| Fan | Yes |
| Vent Location | Top |
| Duct Diameter | 6" |
| Duct Type | Round |
| Number of Light Bulbs | 2 |
| Light Bulb Type | LED |
| Programmable Turn Off | Yes |
| Weight | 40.00 lbs |
| ZLINE E690 Dimensions |
| Exterior Width | 21" |
| Height | 11.5" |
| Depth | 11.875" |
| CFM | 400 CFM |
