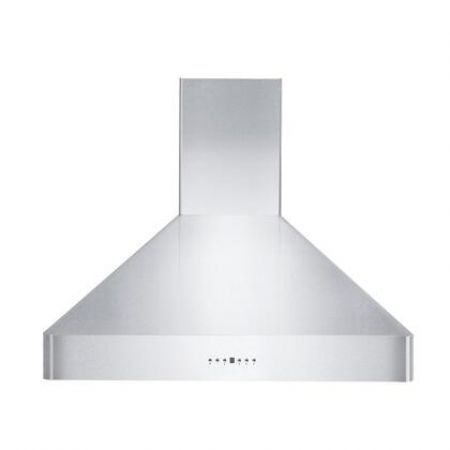

| ZLINE KF230 Appearance |
| Type | Hood |
| Style | Chimney Style |
| Venting Type | Convertible |
| Blower Type | Internal |
| ZLINE KF230 Features |
| Vent Location | Top |
| Duct Type | Round |
| Light | Yes |
| Light Bulb Type | LED |
| Number of Fan Speeds | 3 or More |
| Glass Canopy | No |
| Push Button Control | Yes |
| 430 Stainless Steel | Yes |
| Stainless Steel Baffle Filter | Yes |
| ZLINE KF230 Technical Details |
| Color | Stainless Steel |
| Width | 30" |
| Volts | 110 Volts |
| Amps | 20 Amps |
| Mounting Height | 30" - 36" |
| Mounting Type | Wall Mount |
| Filter Type | Baffle |
| Frequency | 60 Hz. |
| Warranty Terms | 3 Years Parts |
| UL | No |
| Fan | Yes |
| Recirculating Kit | Sold Separately |
| Duct Diameter | 6" |
| cUL | No |
| Duct Cover Width | 10.58" |
| Duct Cover Depth | 8" |
| Make-Up Air Compliant | Yes |
| Duct Cover Height | 32" |
| Number of Light Bulbs | 2 |
| Programmable Turn Off | Yes |
| Weight | 80.00 lbs |
| ZLINE KF230 Dimensions |
| Height | 45.75" |
| Exterior Width | 30" |
| Depth | 20.5" |
| CFM | 400 CFM |
