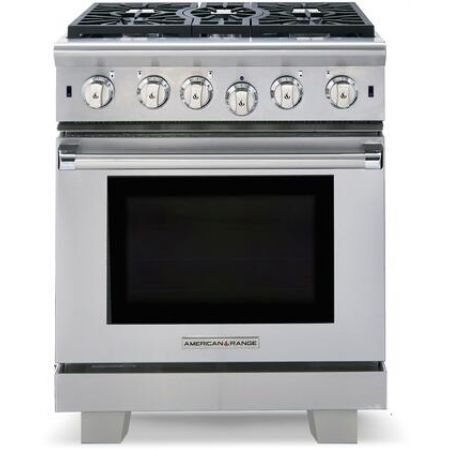

| American Range ARR530L Appearance |
| Gas Type | Liquid Propane |
| Pro-Style | Yes |
| LP Conversion | No |
| Cooktop | Sealed Burner |
| Drawer | None |
| American Range ARR530L Handle |
| Handle Design | Pro Style |
| Handle Shape | Tubular |
| Handle Type | Bar |
| Handle Color | Stainless Steel |
| American Range ARR530L Cooktop Features |
| Burners / Elements | 5 |
| Highest Burner Output | 25000 BTU |
| Downdraft Ventilation | No |
| Griddle | No |
| Grill | No |
| Cooktop Control Type | Knobs |
| American Range ARR530L Oven Features |
| Convection | Yes |
| Self-Cleaning | No |
| Double Oven | No |
| Viewing Window | Yes |
| Temperature Probe | No |
| Delay Bake | No |
| Steam-Clean | No |
| American Range ARR530L Features |
| Sabbath Mode | No |
| ADA Compliant | No |
| Continuous Grates | Yes |
| Cast Iron Grates | Yes |
| Digital Clock | No |
| Infrared Broiler | Yes |
| Digital Temperature Display | No |
| Blue LED Indicator Iights | Yes |
| Innovection Convection System | Yes |
| Electronic Ignition | Yes |
| Continuous Cast Iron Grates | Yes |
| American Range ARR530L Technical Details |
| Color | Stainless Steel |
| Style | Freestanding |
| Width | 29.88" |
| Fuel Type | Gas |
| Burners | 5 |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Hot Surface Indicator Light | No |
| Interior Oven Light | Yes |
| Timer | No |
| Oven Racks | 2 |
| Proofing | No |
| Removable Door | No |
| Oven BTUs | 30000 BTU |
| Interior Width | 26.5" |
| Interior Depth | 19" |
| Interior Height | 15" |
| Broiler | Yes |
| Frequency | 60 Hz. |
| Star-K Certified | No |
| Oven Control Type | Knobs |
| Steam Oven | No |
| French Top | No |
| Name | Americana |
| Dual Door | No |
| Front Left Output | 13000 |
| Back Left Output | 18000 |
| Back Right Output | 13000 |
| Front Right Output | 25000 |
| Middle Center Output | 13000 |
| Weight | 331.00 lbs |
| American Range ARR530L Dimensions |
| Exterior Width | 30" |
| Height | 37.5" |
| Depth | 29.94" |
| Total Capacity | 4.6 cu. ft. |
