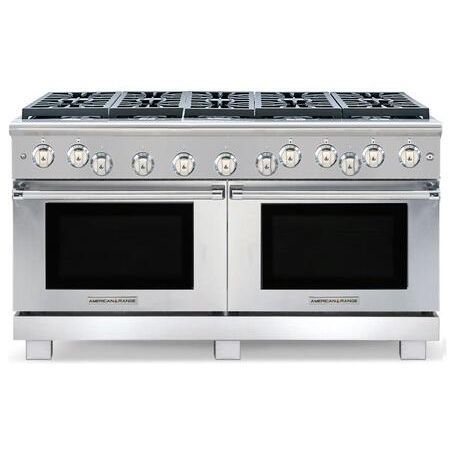

| American Range ARR6010DFL Appearance |
| Gas Type | Liquid Propane |
| Pro-Style | Yes |
| Cooktop | Sealed Burner |
| Drawer | None |
| American Range ARR6010DFL Handle |
| Handle Design | Pro Style |
| Handle Shape | Tubular |
| Handle Type | Bar |
| Handle Color | Stainless Steel |
| American Range ARR6010DFL Cooktop Features |
| Highest Burner Output | 25000 BTU |
| Griddle | No |
| Grill | No |
| Cast Iron Grates | Yes |
| Continuous Grates | Yes |
| Downdraft Ventilation | No |
| Cooktop Control Type | Knobs |
| American Range ARR6010DFL Oven Features |
| Viewing Window | Yes |
| Double Oven | Yes |
| Convection | Yes |
| Self-Cleaning | Yes |
| Temperature Probe | No |
| Delay Bake | No |
| Steam-Clean | No |
| Oven Control Type | Knobs |
| American Range ARR6010DFL Technical Details |
| Color | Stainless Steel |
| Style | Freestanding |
| Width | 59.88" |
| Fuel Type | Dual Fuel |
| Burners | 10 |
| Volts | 240 Volts |
| Amps | 60 Amps |
| Interior Oven Light | Yes |
| Timer | No |
| ADA Compliant | No |
| Oven Racks | 4 |
| Proofing | No |
| Primary Oven Capacity | 5 cu. ft. |
| Burners / Elements | 10 |
| Interior Width | 25.75" |
| Interior Depth | 20.5" |
| Interior Height | 16.5" |
| Secondary Oven Capacity | 5 cu. ft. |
| Broiler | Yes |
| Frequency | 60 Hz. |
| Burner Configuration | 10 Burners |
| Steam Oven | No |
| Oven Watts | 3500 Watts |
| French Top | No |
| Name | Iconica |
| Dual Door | Yes |
| Front Left Output | 18000 |
| Back Left Output | 13000 |
| Back Right Output | 13000 |
| Front Right Output | 18000 |
| Middle Front Left Output | 13000 |
| Middle Back Left Output | 18000 |
| Middle Front Right Output | 13000 |
| Middle Back Right Output | 18000 |
| Middle Back Output | 13000 |
| Middle Front Output | 25000 |
| Secondary Interior Width | 25.75" |
| Secondary Interior Depth | 20.5" |
| Secondary Interior Height | 16.5" |
| Weight | 780.00 lbs |
| American Range ARR6010DFL Features |
| Sabbath Mode | No |
| Digital Temperature Display | No |
| Digital Clock | No |
| Continuous Cast Iron Grates | Yes |
| Commercial Heritage | Yes |
| Self-Clean Oven | Yes |
| American Range ARR6010DFL Dimensions |
| Exterior Width | 60" |
| Height | 37" |
| Depth | 29.875" |
| Total Capacity | 10 cu. ft. |
