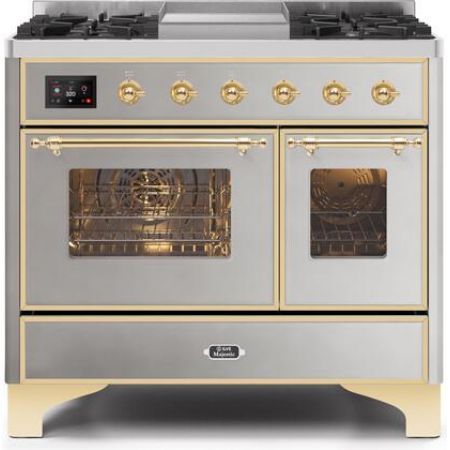

| ILVE UMD10FDNS3SSG Appearance |
| Gas Type | Natural Gas |
| LP Conversion | Yes |
| Cooktop | Sealed Burner |
| Drawer | Warming |
| Trim | Brass |
| ILVE UMD10FDNS3SSG Handle |
| Handle Design | Traditional |
| Handle Shape | Tubular |
| Handle Type | Bar |
| Handle Color | Brass |
| ILVE UMD10FDNS3SSG Cooktop Features |
| Brass Burners | Yes |
| Highest Burner Output | 20000 BTU |
| Griddle | Yes |
| Grill | No |
| Cast Iron Grates | Yes |
| Continuous Grates | Yes |
| Downdraft Ventilation | No |
| Cooktop Control Type | Knobs |
| ILVE UMD10FDNS3SSG Oven Features |
| Viewing Window | Yes |
| Double Oven | Yes |
| Convection | Yes |
| Self-Cleaning | No |
| Temperature Probe | Yes |
| Delay Bake | Yes |
| Steam-Clean | No |
| Oven Control Type | Digital |
| ILVE UMD10FDNS3SSG Technical Details |
| Color | Stainless Steel |
| Weight | 390 lb |
| Style | Freestanding |
| Width | 39.37" |
| Fuel Type | Dual Fuel |
| Burners | 6 |
| Volts | 240 Volts |
| Rotisserie | Yes |
| Amps | 30 Amps |
| Hot Surface Indicator Light | No |
| Interior Oven Light | Yes |
| Timer | Yes |
| ADA Compliant | No |
| Cutout Width | 39.37" |
| Cutout Depth | 29.72" |
| Cutout Height | 35.83" |
| Oven Racks | 3 |
| Removable Door | No |
| Primary Oven Capacity | 2.3 cu. ft. |
| Burners / Elements | 6 |
| Interior Width | 17.13" |
| Interior Depth | 16.14" |
| Interior Height | 14.17" |
| Secondary Oven Capacity | 1.52 cu. ft. |
| Broiler | Yes |
| Frequency | 60 Hz. |
| Cooktop Surface | Deep Recessed |
| Number of Racks | 2 |
| Star-K Certified | Yes |
| Steam Oven | No |
| Main Oven Capacity | 2.3 cu. ft. |
| Oven Type | Convection Oven |
| Knob Color | Brass |
| Power Cord Type | 4 Prong Wire |
| French Top | No |
| Dual Door | Yes |
| Front Left Output | 20000 |
| Back Left Output | 10500 |
| Back Right Output | 10500 |
| Front Right Output | 3200 |
| Middle Back Output | 10500 |
| Middle Front Output | 6100 |
| Back Center Output | 10500 BTU |
| Front Center Output | 7000 BTU |
| Secondary Interior Width | 10.24" |
| Secondary Interior Depth | 17.52" |
| Secondary Interior Height | 14.17" |
| Interiod Width | 15.35" |
| Oven Control Location | Front |
| Range Overall Width | 39.37" |
| Range Maximum Overall Height | 35.83" |
| Range Minimum Overall Height | 35.83" |
| Range Overall Depth with Handles | 29.72" |
| Range Overall Depth without Handles | 27.56" |
| ILVE UMD10FDNS3SSG Features |
| Sabbath Mode | Yes |
| Digital Temperature Display | Yes |
| Digital Clock | Yes |
| Handcrafted from Italy | Yes |
| High-End Workmanship | Yes |
| Oven: Defrost Function | Yes |
| Gas Conversion Kit Included | Yes |
| TFT Oven Control Display | Yes |
| Nano-Tech Non Stick Coated Burners | Yes |
| Interchangeable Griddle with Burner Grate | Yes |
| Continuous Cast Iron Grates | Yes |
| Sustainability | Yes |
| Made in Italy | Yes |
| Dual Gas Burners | Yes |
| Sealed Oven | Yes |
| Fast Preheat | Yes |
| Star-K Certification | Yes |
| Interior Oven Light | Yes |
| Temperature Probe | Yes |
| Self-Cleaning | Yes |
| ILVE UMD10FDNS3SSG Dimensions |
| Exterior Width | 40" |
| Height | 34.25" |
| Depth | 26.38" |
| Total Capacity | 3.82 cu. ft. |
