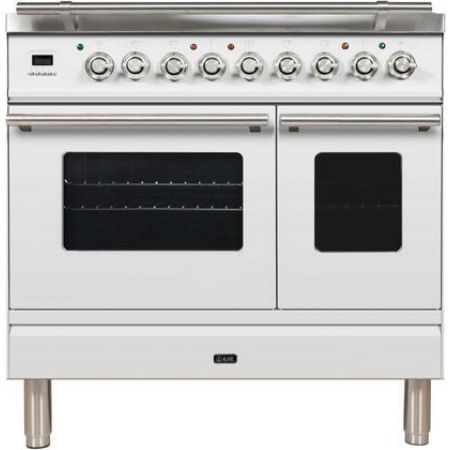

| ILVE UPDW90FDMPB Appearance |
| Gas Type | Natural Gas |
| Pro-Style | Yes |
| Cooktop | Sealed Burner |
| Drawer | Storage |
| Trim | Chrome |
| ILVE UPDW90FDMPB Handle |
| Handle Design | Contemporary |
| Handle Shape | Tubular |
| Handle Type | Bar |
| Handle Color | Chrome |
| ILVE UPDW90FDMPB Cooktop Features |
| Brass Burners | Yes |
| Highest Burner Output | 15500 BTU |
| Griddle | Yes |
| Grill | No |
| Cast Iron Grates | Yes |
| Continuous Grates | Yes |
| Downdraft Ventilation | No |
| Cooktop Control Type | Knobs |
| ILVE UPDW90FDMPB Oven Features |
| Viewing Window | Yes |
| Double Oven | Yes |
| Convection | Yes |
| Self-Cleaning | No |
| Oven Control Type | Digital and Knobs |
| ILVE UPDW90FDMPB Technical Details |
| Color | White |
| Style | Freestanding |
| Width | 35.43" |
| Fuel Type | Dual Fuel |
| Burners | 5 |
| Volts | 240 Volts |
| Rotisserie | Yes |
| Amps | 30 Amps |
| Interior Oven Light | Yes |
| Timer | Yes |
| ADA Compliant | No |
| Oven Racks | 2 |
| Primary Oven Capacity | 2.44 cu. ft. |
| Burners / Elements | 5 |
| Interior Width | 17.3125" |
| Interior Depth | 16.14" |
| Interior Height | 13.19" |
| Secondary Oven Capacity | 1.54 cu. ft. |
| Broiler | Yes |
| Frequency | 60 Hz. |
| Star-K Certified | No |
| Steam Oven | No |
| Knob Color | Chrome |
| Power Cord Type | 4 Prong Wire |
| Minimum Height | 35.75" |
| French Top | No |
| Dual Door | No |
| Height to Cooktop Surface | 35.875" |
| Front Left Output | 15500 |
| Back Left Output | 10500 |
| Back Right Output | 10500 |
| Front Right Output | 7000 |
| Griddle Output | 10500 |
| Secondary Interior Width | 10.24" |
| Secondary Interior Depth | 16.14" |
| Secondary Interior Height | 13.19" |
| Range Overall Width | 35.43" |
| Range Maximum Overall Height | 39.57" |
| Range Minimum Overall Height | 35.63" |
| Range Overall Depth with Handles | 25.98" |
| Range Overall Depth without Handles | 23.62" |
| Weight | 270.00 lbs |
| ILVE UPDW90FDMPB Features |
| Sabbath Mode | No |
| Digital Temperature Display | Yes |
| Digital Clock | Yes |
| Continuous Cast Iron Grates | Yes |
| Rotisserie | Yes |
| High-End Workmanship | Yes |
| Dual Function Triple Ring Burner | Yes |
| Interior Oven Light | Yes |
| ILVE UPDW90FDMPB Dimensions |
| Exterior Width | 36" |
| Height | 37.99" |
| Depth | 21.65" |
| Total Capacity | 3.98 cu. ft. |
