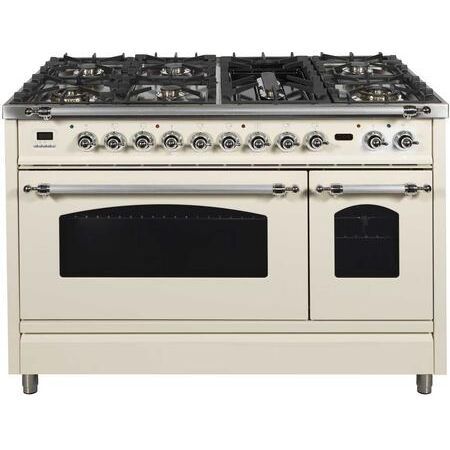

| ILVE UPN120FDMPAX Appearance |
| Gas Type | Natural Gas |
| LP Conversion | Yes |
| Pro-Style | Yes |
| Cooktop | Sealed Burner |
| Drawer | Storage |
| Trim | Chrome |
| ILVE UPN120FDMPAX Handle |
| Handle Design | Traditional |
| Handle Shape | Tubular |
| Handle Type | Bar |
| Handle Color | Chrome |
| ILVE UPN120FDMPAX Cooktop Features |
| Brass Burners | Yes |
| Highest Burner Output | 15500 BTU |
| Griddle | Yes |
| Grill | No |
| Cast Iron Grates | Yes |
| Continuous Grates | Yes |
| Downdraft Ventilation | No |
| Cooktop Control Type | Knobs |
| ILVE UPN120FDMPAX Oven Features |
| Viewing Window | Yes |
| Double Oven | Yes |
| Convection | Yes |
| Self-Cleaning | No |
| Temperature Probe | No |
| Delay Bake | Yes |
| Steam-Clean | No |
| Oven Control Type | Knobs |
| ILVE UPN120FDMPAX Technical Details |
| Color | Antique White |
| Style | Freestanding |
| Width | 47.24" |
| Fuel Type | Dual Fuel |
| Burners | 7 |
| Volts | 240 Volts |
| Rotisserie | Yes |
| Amps | 40 Amps |
| Interior Oven Light | Yes |
| Timer | Yes |
| ADA Compliant | No |
| Oven Racks | 3 |
| Removable Door | No |
| Primary Oven Capacity | 3.55 cu. ft. |
| Burners / Elements | 7 |
| Interior Width | 25.2" |
| Interior Depth | 16.14" |
| Interior Height | 13.19" |
| Secondary Oven Capacity | 1.44 cu. ft. |
| Broiler | Yes |
| Frequency | 60 Hz. |
| Self-Clean | Optional |
| Steam Oven | No |
| Handle Style | Traditional |
| Design Style | Traditional |
| Knob Color | Chrome |
| Power Cord Type | 4 Prong Wire |
| French Top | No |
| Dual Door | Yes |
| Front Left Output | 15500 |
| Back Left Output | 10500 |
| Back Right Output | 8500 |
| Front Right Output | 15500 |
| Middle Front Left Output | 7000 |
| Middle Back Left Output | 8000 |
| Griddle Output | 10500 |
| Middle Right Output | 10500 |
| Secondary Interior Width | 10.24" |
| Secondary Interior Depth | 16.14" |
| Secondary Interior Height | 13.19" |
| Electric Rotisserie | Yes |
| Heat Resistant Knobs | Yes |
| Range Overall Width | 47.24" |
| Range Maximum Overall Height | 39.57" |
| Range Minimum Overall Height | 35.63" |
| Range Overall Depth with Handles | 25.79" |
| Range Overall Depth without Handles | 23.62" |
| Weight | 324.00 lbs |
| ILVE UPN120FDMPAX Features |
| Sabbath Mode | No |
| Simmer Burner | Yes |
| Infrared Griddle | Yes |
| Infrared Broiler | Yes |
| Digital Temperature Display | No |
| Digital Clock | Yes |
| Made in USA | No |
| Handcrafted from Italy | Yes |
| High-End Workmanship | Yes |
| Dual Function Triple Ring Burner | Yes |
| True European Convection | Yes |
| Oven: Defrost Function | Yes |
| Gas Conversion Kit Included | Yes |
| Interchangeable Griddle with Burner Grate | Yes |
| Star-K Certification | Yes |
| Interior Oven Light | Yes |
| Self-Cleaning | Yes |
| Continuous Cast Iron Grates | Yes |
| Sustainability | Yes |
| Temperature Probe | Yes |
| Dual Gas Burners | Yes |
| ILVE UPN120FDMPAX Dimensions |
| Exterior Width | 48" |
| Height | 37.99" |
| Depth | 21.65" |
| Total Capacity | 4.99 cu. ft. |
