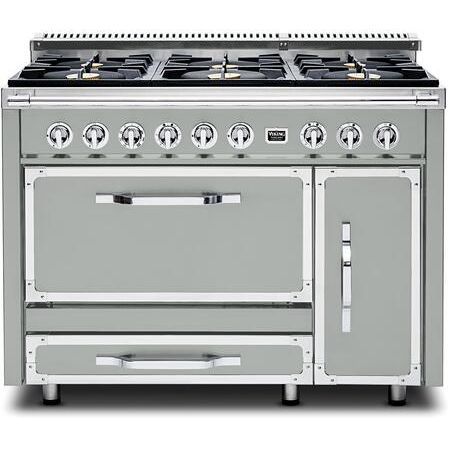

| Viking TVDR4816BAG Appearance |
| Gas Type | Natural Gas |
| LP Conversion | Yes |
| Cooktop | Sealed Burner |
| Drawer | Storage |
| Viking TVDR4816BAG Handle |
| Handle Type | Bar |
| Viking TVDR4816BAG Cooktop Features |
| Induction | Yes |
| Brass Burners | Yes |
| Highest Burner Output | 20500 BTU |
| Griddle | No |
| Grill | No |
| Cast Iron Grates | Yes |
| Continuous Grates | Yes |
| Downdraft Ventilation | No |
| Cooktop Control Type | Knobs |
| Viking TVDR4816BAG Oven Features |
| Viewing Window | No |
| Double Oven | Yes |
| Convection | Yes |
| Self-Cleaning | No |
| Temperature Probe | No |
| Delay Bake | No |
| Steam-Clean | No |
| Oven Control Type | Knobs |
| Viking TVDR4816BAG Technical Details |
| Color | Arctic Grey |
| Style | Freestanding |
| Width | 47.875" |
| Fuel Type | Dual Fuel |
| Burners | 6 |
| Volts | 240 Volts |
| Amps | 50 Amps |
| Interior Oven Light | Yes |
| Timer | No |
| ADA Compliant | No |
| Cutout Width | 48" |
| Stainless Steel Handle | Yes |
| Broiler Element Location | Top |
| Oven Racks | 3 |
| Removable Door | No |
| Primary Oven Capacity | 3.8 cu. ft. |
| Burners / Elements | 6 |
| Interior Width | 23.75" |
| Interior Depth | 19.625" |
| Interior Height | 13" |
| Secondary Oven Capacity | 2.4 cu. ft. |
| Broiler | Yes |
| Fast Preheat | Yes |
| Frequency | 60 Hz. |
| Burner Configuration | 6 Burners |
| Depth without Handle | 27.5" |
| Star-K Certified | No |
| Depth with Door at 90 Degrees | 40" |
| Steam Oven | No |
| Knob Type | Polished Chrome Die Cast |
| Grate Type | Porcelain Coated Cast Iron |
| Proof Mode | Yes |
| French Top | No |
| Left Oven Rack Positions | 6 |
| Height without Backguard | 35.875" |
| Dual Door | Yes |
| Minimum Volts | 208 Volts |
| Amps at 208 Volts | 49 Amps |
| Height Clearance from Hood | 30" - 36" |
| Oven Cavity Material | Stainless Steel |
| Burner Pan | Stainless Steel |
| Number of Left Oven Lights | 2 |
| Front Left Output | 20500 |
| Back Left Output | 8500 |
| Back Right Output | 13650 |
| Front Right Output | 20500 |
| Middle Back Output | 13650 |
| Middle Front Output | 20500 |
| Secondary Interior Width | 11.625" |
| Secondary Interior Depth | 19.625" |
| Secondary Interior Height | 18.25" |
| Glide Rack(s) | Yes |
| Weight | 510.00 lbs |
| Viking TVDR4816BAG Features |
| Sabbath Mode | No |
| Simmer Burner | Yes |
| Digital Temperature Display | No |
| Digital Clock | No |
| Made in USA | Yes |
| Fast Preheat | Yes |
| 6 Sealed Burners | Yes |
| Double Ovens | Yes |
| Storage Drawer | Yes |
| Continuous Grates | Yes |
| Convection Bake | Yes |
| Bright Oven Lights | Yes |
| Defrost | Yes |
| Viking TVDR4816BAG Dimensions |
| Exterior Width | 48" |
| Height | 39.75" |
| Depth | 30.375" |
| Total Capacity | 6.2 cu. ft. |
