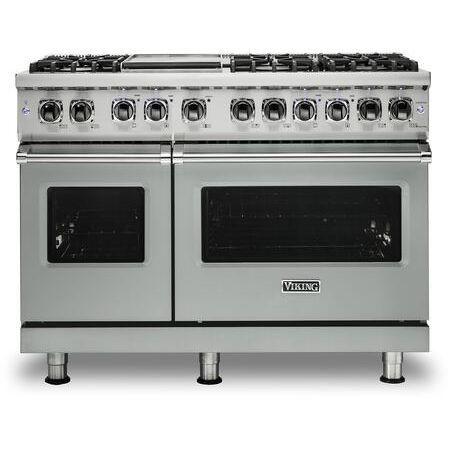

| Viking VDR5486GAGLP Appearance |
| Gas Type | Liquid Propane |
| Pro-Style | Yes |
| Cooktop | Sealed Burner |
| Drawer | None |
| Viking VDR5486GAGLP Handle |
| Handle Design | Pro Style |
| Handle Shape | Tubular |
| Handle Type | Bar |
| Handle Color | Stainless Steel |
| Viking VDR5486GAGLP Cooktop Features |
| Highest Burner Output | 16600 BTU |
| Griddle | Yes |
| Grill | No |
| Cast Iron Grates | Yes |
| Continuous Grates | Yes |
| Downdraft Ventilation | No |
| Cooktop Control Type | Knobs |
| Viking VDR5486GAGLP Oven Features |
| Viewing Window | Yes |
| Double Oven | Yes |
| Convection | Yes |
| Self-Cleaning | Yes |
| Temperature Probe | No |
| Delay Bake | No |
| Steam-Clean | No |
| Oven Control Type | Knobs |
| Viking VDR5486GAGLP Technical Details |
| Color | Arctic Grey |
| Style | Freestanding |
| Width | 47.875" |
| Fuel Type | Dual Fuel |
| Burners | 6 |
| Volts | 240 Volts |
| Amps | 50 Amps |
| Interior Oven Light | Yes |
| Timer | No |
| ADA Compliant | No |
| Oven Racks | 5 |
| Proofing | Yes |
| Removable Door | Yes |
| Primary Oven Capacity | 4.7 cu. ft. |
| Burners / Elements | 6 |
| Interior Width | 25.3125" |
| Interior Depth | 19.5" |
| Interior Height | 16.5" |
| Secondary Oven Capacity | 2.6 cu. ft. |
| Broiler | Yes |
| Frequency | 60 Hz. |
| Burner Configuration | 6 Sealed Burners and Griddle |
| Star-K Certified | No |
| Steam Oven | No |
| French Top | No |
| Dual Door | Yes |
| Depth with Door Opened | 45.125" |
| Front Left Output | 12500 |
| Back Left Output | 12500 |
| Back Right Output | 12500 |
| Front Right Output | 16600 |
| Middle Front Right Output | 12500 |
| Middle Back Right Output | 12500 |
| Griddle Output | 12500 |
| Secondary Interior Width | 13.75" |
| Secondary Interior Depth | 19.5" |
| Secondary Interior Height | 16.5" |
| Gliding Rack System | Yes |
| Weight | 585.00 lbs |
| Viking VDR5486GAGLP Features |
| Sabbath Mode | No |
| Simmer Burner | Yes |
| Digital Temperature Display | Yes |
| Digital Clock | No |
| Made in USA | Yes |
| Self-Cleaning | Yes |
| Vari-Speed Dual Flow Convection | Yes |
| Rapid Ready Preheat System | Yes |
| TruPower Plus | Yes |
| SoftLit LED Lights | Yes |
| SureSpark Ignition System | Yes |
| GentleClose Door | Yes |
| Continuous Grates | Yes |
| 6 Sealed Burners | Yes |
| Viking VDR5486GAGLP Dimensions |
| Exterior Width | 48" |
| Height | 35.875" |
| Depth | 28.6875" |
| Total Capacity | 7.3 cu. ft. |
