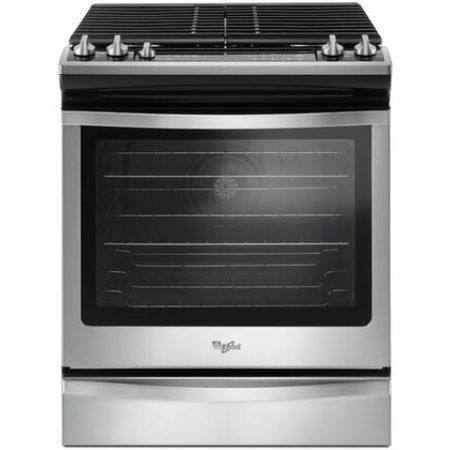

| Whirlpool WEG745H0FS Appearance |
| Gas Type | Natural Gas |
| LP Conversion | Yes |
| Cooktop | Sealed Burner |
| Drawer | Storage |
| Whirlpool WEG745H0FS Handle |
| Handle Design | Contemporary |
| Handle Shape | Curved |
| Handle Type | Bar |
| Handle Color | Stainless Steel |
| Whirlpool WEG745H0FS Cooktop Features |
| Burners / Elements | 5 |
| Downdraft Ventilation | No |
| Griddle | No |
| Grill | No |
| Cooktop Control Type | Knobs |
| Whirlpool WEG745H0FS Oven Features |
| Convection | Yes |
| Viewing Window | Yes |
| Double Oven | No |
| Self-Cleaning | Yes |
| Temperature Probe | No |
| Delay Bake | Yes |
| Steam-Clean | Yes |
| Whirlpool WEG745H0FS Features |
| Sabbath Mode | Yes |
| ADA Compliant | Yes |
| Continuous Grates | Yes |
| Digital Clock | Yes |
| Digital Temperature Display | Yes |
| True Convection Cooking | Yes |
| AquaLift Self-Cleaning Technology | Yes |
| Continuous Cast Iron Grates | Yes |
| Whirlpool WEG745H0FS Technical Details |
| Color | Stainless Steel |
| Style | Slide-In |
| Width | 29.88" |
| Fuel Type | Gas |
| Burners | 5 |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Hot Surface Indicator Light | No |
| Interior Oven Light | Yes |
| Timer | Yes |
| Stainless Steel Handle | Yes |
| Oven Racks | 3 |
| Proofing | No |
| Removable Door | No |
| Oven BTUs | 18000 |
| Frequency | 60 Hz. |
| Star-K Certified | No |
| Oven Control Type | Touchpad |
| French Top | No |
| Dual Door | No |
| Front Left Output | 17000 |
| Back Left Output | 5000 |
| Back Right Output | 9200 |
| Front Right Output | 15000 |
| Middle Center Burner | 8000 |
| Weight | 210.00 lbs |
| Whirlpool WEG745H0FS Dimensions |
| Exterior Width | 30" |
| Height | 36" |
| Depth | 28.88" |
| Total Capacity | 5.8 cu. ft. |
