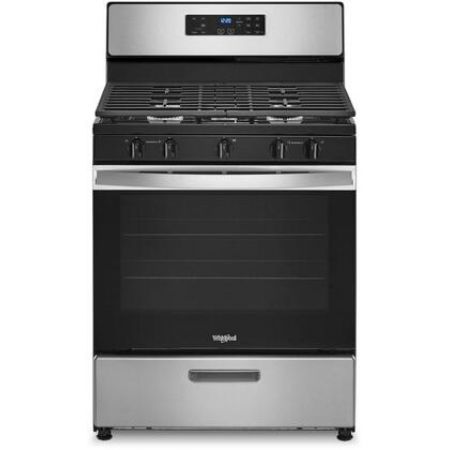

| Whirlpool WFG505M0MS Appearance |
| Gas Type | Natural Gas |
| LP Conversion | Yes |
| Cooktop | Sealed Burner |
| Drawer | Broiler |
| Whirlpool WFG505M0MS Handle |
| Handle Design | Contemporary |
| Handle Shape | Curved |
| Handle Type | Bar |
| Handle Color | Stainless Steel |
| Whirlpool WFG505M0MS Cooktop Features |
| Burners / Elements | 5 |
| Downdraft Ventilation | No |
| Griddle | No |
| Grill | No |
| Cooktop Control Type | Knobs |
| Whirlpool WFG505M0MS Oven Features |
| Convection | No |
| Self-Cleaning | No |
| Double Oven | No |
| Viewing Window | Yes |
| Temperature Probe | No |
| Delay Bake | Yes |
| Steam-Clean | No |
| Whirlpool WFG505M0MS Features |
| Sabbath Mode | Yes |
| ADA Compliant | No |
| Continuous Grates | Yes |
| Cast Iron Grates | Yes |
| Digital Clock | Yes |
| Sealed Burners | Yes |
| Continuous Cast Iron Grates | Yes |
| Delay Start | Yes |
| Star-K Certification | Yes |
| Control Lock | Yes |
| Center Oval Burner | Yes |
| Keep Warm Setting | Yes |
| Whirlpool WFG505M0MS Technical Details |
| Color | Stainless Steel |
| Style | Freestanding |
| Width | 29.875" |
| Fuel Type | Gas |
| Burners | 5 |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Interior Oven Light | Yes |
| Timer | Yes |
| Oven Racks | 2 |
| Oven BTUs | 16500 BTU |
| Interior Width | 25" |
| Interior Depth | 19" |
| Interior Height | 18.375" |
| Broiler | Yes |
| Frequency | 60 Hz. |
| Star-K Certified | Yes |
| Oven Control Type | Digital |
| Steam Oven | No |
| French Top | No |
| Dual Door | No |
| Front Left Output | 15000 |
| Back Left Output | 9500 |
| Back Right Output | 5000 |
| Front Right Output | 15000 |
| Middle Center Output | 10000 |
| Weight | 136.00 lbs |
| Whirlpool WFG505M0MS Dimensions |
| Exterior Width | 30" |
| Height | 46.25" |
| Depth | 27.2" |
| Total Capacity | 5.1 cu. ft. |
