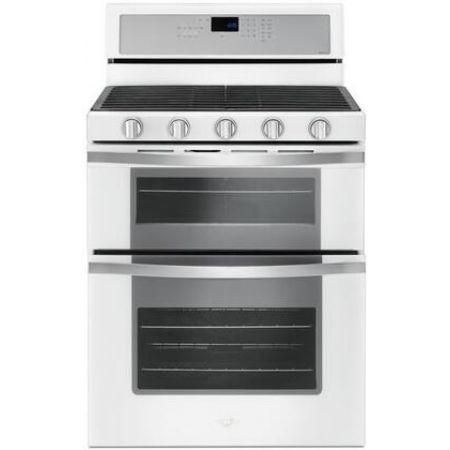

| Whirlpool WGG745S0FH Appearance |
| Gas Type | Natural Gas |
| LP Conversion | No |
| Cooktop | Sealed Burner |
| Drawer | None |
| Whirlpool WGG745S0FH Handle |
| Handle Design | Contemporary |
| Handle Shape | Curved |
| Handle Type | Bar |
| Handle Color | Stainless Steel |
| Whirlpool WGG745S0FH Cooktop Features |
| Burners / Elements | 5 |
| Highest Burner Output | 16000 BTU |
| Downdraft Ventilation | No |
| Griddle | No |
| Grill | No |
| Cooktop Control Type | Knobs |
| Whirlpool WGG745S0FH Oven Features |
| Convection | Yes |
| Self-Cleaning | Yes |
| Double Oven | Yes |
| Viewing Window | Yes |
| Temperature Probe | No |
| Delay Bake | Yes |
| Steam-Clean | Yes |
| Whirlpool WGG745S0FH Features |
| Sabbath Mode | Yes |
| ADA Compliant | No |
| Continuous Grates | Yes |
| Cast Iron Grates | Yes |
| Digital Clock | Yes |
| Digital Temperature Display | Yes |
| True Convection Cooking | Yes |
| Continuous Cast Iron Grates | Yes |
| SpeedHeat Burner | Yes |
| Whirlpool WGG745S0FH Technical Details |
| Color | White Ice |
| Style | Freestanding |
| Width | 29.9375" |
| Fuel Type | Gas |
| Burners | 5 |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Hot Surface Indicator Light | No |
| Interior Oven Light | Yes |
| Timer | Yes |
| Cutout Width | 30.13" |
| Cutout Depth | 24" |
| Cutout Height | 36" |
| Broiler Element Location | Top |
| Oven Racks | 3 |
| Proofing | No |
| Removable Door | No |
| Primary Oven Capacity | 3.9 cu. ft. |
| Oven BTUs | 10000 BTU |
| Secondary Oven Capacity | 2.1 cu. ft. |
| Frequency | 60 Hz. |
| Simmer Burner | Yes |
| Star-K Certified | No |
| Oven Control Type | Touchpad |
| Depth with Door at 90 Degrees | 46" |
| Steam Oven | No |
| French Top | No |
| Dual Door | Yes |
| Front Left Output | 16000 |
| Back Left Output | 5000 |
| Back Right Output | 5000 |
| Front Right Output | 10000 |
| Middle Center Burner | 7350 |
| Weight | 225.00 lbs |
| Whirlpool WGG745S0FH Dimensions |
| Exterior Width | 30" |
| Height | 47.125" |
| Depth | 28.5" |
| Total Capacity | 6 cu. ft. |
