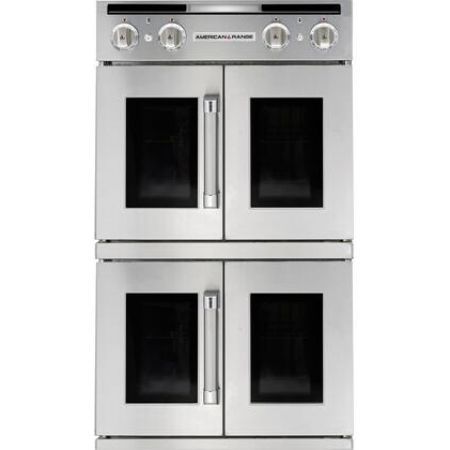

| American Range AROFFG230N Appearance |
| Type | Oven Only |
| Fuel Type | Gas |
| Microwave | No |
| Speed Oven | No |
| Upper Capacity | 4.7 cu. ft. |
| Lower Capacity | 4.7 cu. ft. |
| Drawer | None |
| American Range AROFFG230N Oven Features |
| Convection | Yes |
| Self-Cleaning | No |
| Control Type | Knobs |
| Interior Light | Yes |
| Delay Bake | No |
| Door Style | French |
| American Range AROFFG230N Technical Details |
| Color | Stainless Steel |
| Capacity | 9.4 cu. ft. |
| Style | Double |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Digital Temperature Display | No |
| Timer | No |
| Approved for Outdoor Use | No |
| Viewing Window | Yes |
| Oven Racks | 4 |
| Proofing | Yes |
| Removable Door | No |
| Exterior Depth | 27" |
| Exterior Height | 59" |
| Broiler | Top |
| Temperature Range | 200 - 500 Degrees F |
| Frequency | 60 Hz. |
| Gas Type | Natural Gas |
| Digital Clock | No |
| Oven Control Type | Knobs |
| Safety Lock | No |
| Depth with Door Open | 39.5" |
| With Turntable | No |
| Undercounter Installation | No |
| Individual Oven Interior Width | 25.25" |
| Individual Oven Interior Depth | 20.75" |
| Individual Oven Interior Height | 15.5" |
| Interior Type | Porcelain |
| Interior Width per Cavity | 25.25" |
| Interior Height per Cavity | 15.5" |
| Interior Depth per Cavity | 20.75" |
| Number of Light Bulbs per Cavity | 2 |
| Rack Positions per Cavity | 6 |
| Door Style Configuration | Double French Door |
| Weight | 608.00 lbs |
| American Range AROFFG230N Features |
| Sabbath Mode | No |
| ADA Compliant | No |
| LP Conversion | No |
| Infrared Broiler | Yes |
| Large Viewing Window | Yes |
| Innovection Convection System | Yes |
| Stainless Steel Construction | Yes |
| Commercial Heritage | Yes |
| American Range AROFFG230N Dimensions |
| Exterior Width | 30" |
| Width | 30" |
| Height | 58.5" |
| Depth | 26.5" |
| Cutout Width | 28.5" |
| Cutout Height | 58.75" |
| Cutout Depth | 24.563" |
